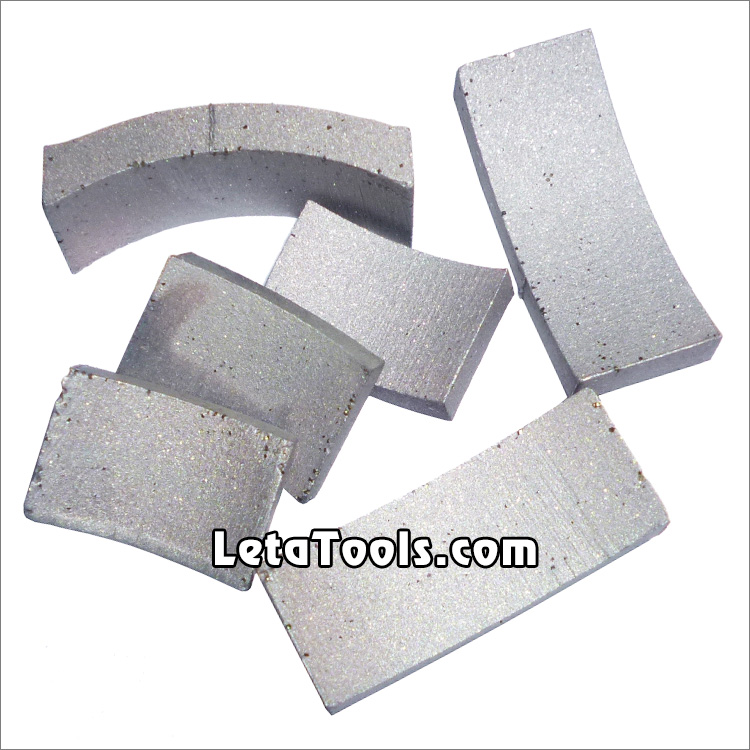

Diamond Segments of Drill Bits for Concrete Drilling

Applications: Widely used for replacement of used segments on diamond drill bits for drilling cured concrete, green concrete, reinforced concrete, brick, block, masonry, stone, or other abrasive materials, such as air conditioner installation, pipeline, high way, road signs, bridges, airports for high speed drilling.

Different bonds are available for different applications.

Welding method: silver or laser welding.

Wet use with sufficient water.

Code No.	Diameter	Segment Size	Segment No.
LT-DSDB-02-01	7/8"(22mm)	17x3.0x10	3
LT-DSDB-02-02	1"(25mm)	17x3.0x10	4
LT-DSDB-02-03	1.18"(29mm)	17x3.0x10	4
LT-DSDB-02-04	1.25"(32mm)	16x3.0x10	4
LT-DSDB-02-05	1.38"(35mm)	16x3.0x10	4
LT-DSDB-02-06	1.50"(38mm)	16x3.0x10	5
LT-DSDB-02-07	1.63"(42mm)	16x3.0x10	5
LT-DSDB-02-08	1.75"(45mm)	16x3.0x10	6
LT-DSDB-02-09	1.88"(48mm)	16x3.0x10	6
LT-DSDB-02-10	2"(52mm)	16x3.0x10	7
LT-DSDB-02-11	2.25"(57mm)	22x3.5x10	5
LT-DSDB-02-12	2.50"(63mm)	22x3.5x10	6
LT-DSDB-02-13	2.75"(70mm)	22x3.5x10	7
LT-DSDB-02-14	3"(76mm)	22x3.5x10	8
LT-DSDB-02-15	3.25"(82mm)	22x3.5x10	9
LT-DSDB-02-16	3.50"(89mm)	22x3.5x10	10
LT-DSDB-02-17	4"(102mm)	22x3.5x10	10
LT-DSDB-02-18	4.25"(108mm)	22x3.5x10	11
LT-DSDB-02-19	4.50"(114mm)	22x3.5x10	11
LT-DSDB-02-20	4.75"(120mm)	24x4.0x10	11
LT-DSDB-02-21	5"(127mm)	24x4.0x10	11
LT-DSDB-02-22	5.5"(140mm)	24x4.0x10	12
LT-DSDB-02-23	5.75"(146mm)	24x4.0x10	13
LT-DSDB-02-24	6"(152mm)	24x4.0x10	13
LT-DSDB-02-25	6.25"(159mm)	24x4.0x10	14
LT-DSDB-02-26	6.5"(165mm)	24x4.0x10	15
LT-DSDB-02-27	7"(178mm)	24x4.0x10	16
LT-DSDB-02-28	8"(203mm)	24x4.5x10	18
LT-DSDB-02-29	9"(229mm)	24x4.5x10	20
LT-DSDB-02-30	10"(254mm)	24x4.5x10	23
LT-DSDB-02-31	11"(280mm)	24x5.0x10	25
LT-DSDB-02-32	12"(305mm)	24x5.0x10	27
LT-DSDB-02-33	13"(330mm)	24x5.5x10	30
LT-DSDB-02-34	14"(356mm)	24x5.5x10	32

The about specifications & photos is for reference, other specification may be available as per demand.
