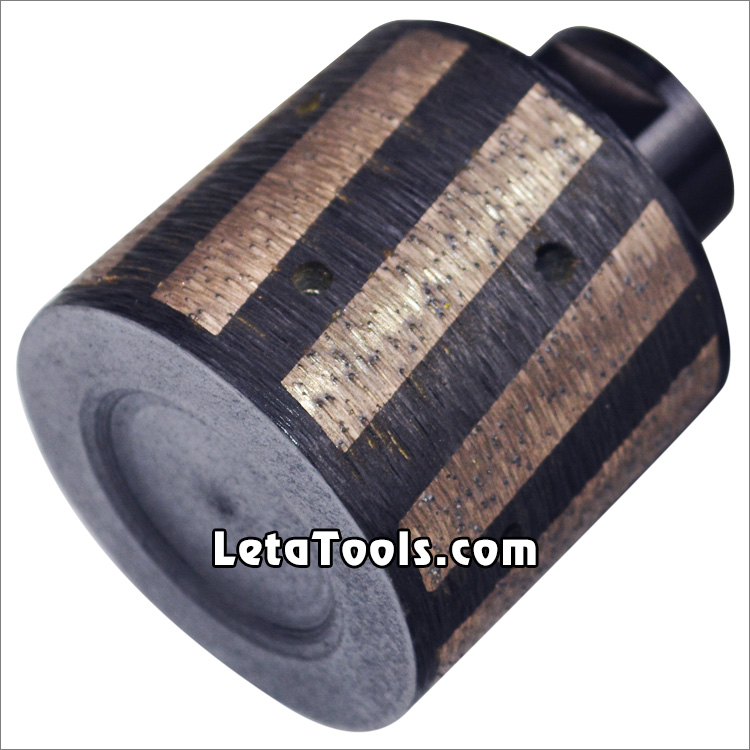

Diamond Drum Wheels - Resin Filled Metal Bond Segmented



Diamond drum Wheels (also we call zero tolerance wheels) 1"(25mm) to 4"(100mm) resin filled metal bond segmented with water holes for aggressive milling grinding sink holes on the slab, kitchens, countertops, etc.,  the segments gap filled with resin, greatly improving the processing stability, reduce vibration as it tends to chatter less and provide a smoother grinding experience than metal wheels., which is a effective way to grind and polish the tight radius, ideal for both professional contractors and DIY home users.



Removes radius stock chip-free, smoother milling without stone edge damage.

Recommended use: Oscillate wheel up and down to wear evenly and avoid grooves.

Suitable for marble, granite, ceramic, porcelain, tile, etc.

Regular grits: coarse(#30/40), medium(#60/80), smooth(#120/140).







Code No.

Diameter

Grit

Working Type

Segment Length

Bore

LT-ZTW-E04-25

25mm(1")

Coarse

Medium

Smooth

Wet

or

Dry

40mm

45mm

50mm

60mm

80mm

100mm

or

as per demand

M14

5/8"-11

1/2 Gas

LT-ZTW-E04-50

50mm(2")

LT-ZTW-E04-75

75mm(3")

LT-ZTW-E04-100

100mm(4")





The about specifications & photos is for reference, other specification may be available as per demand.
