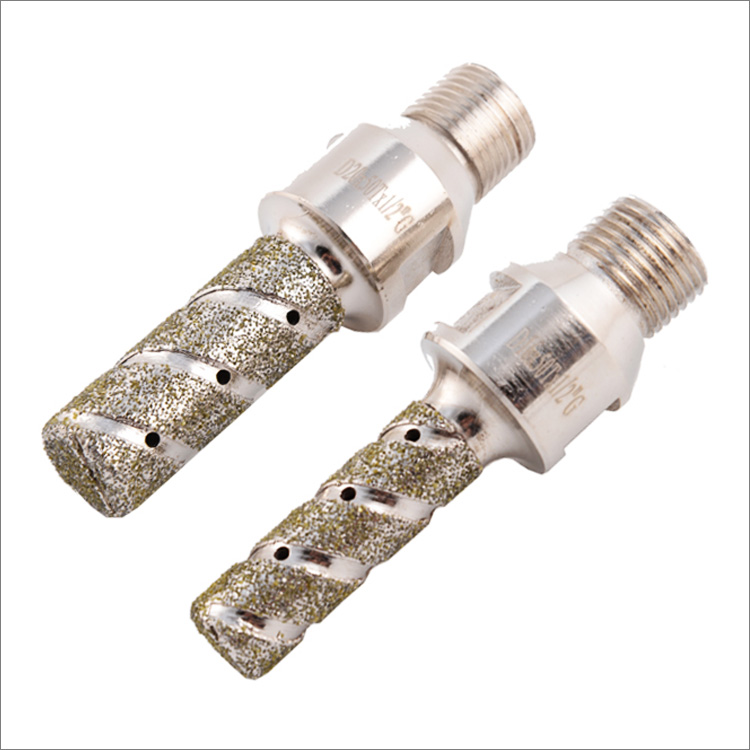

Diamond Finger Bits - Electroplated



Diamond finger bits electroplated are ideal for fast stock removal as well as truing up saw lines, which is usually mounted on CNC machines, radial arm machines, angle grinder, or hand-held grinding machines for hole grinding, anchor and blind hole, working as milling cutter for cutting any arc of marble, limestone, travertine, and other soft stones with chip-free & stable performance.



Its grooved water channel provides necessary lubrication while removing slurry from the cutting surface.



Wet or dry use, water coolant is much better for drilling performance and working life.



The RPM is around 6000-7000.







Code No.

Diameter

Connection Segment Length Diamond Grit
LT-DFB-08 10mm-25mm

M14

5/8"-11

1/2 Gas (Male Thread)

20mm

30mm

40mm

50mm

60mm

or

as per demand

#30-#120

or

as per demand





The about specifications & photos is for reference, other specification may be available as per demand.
