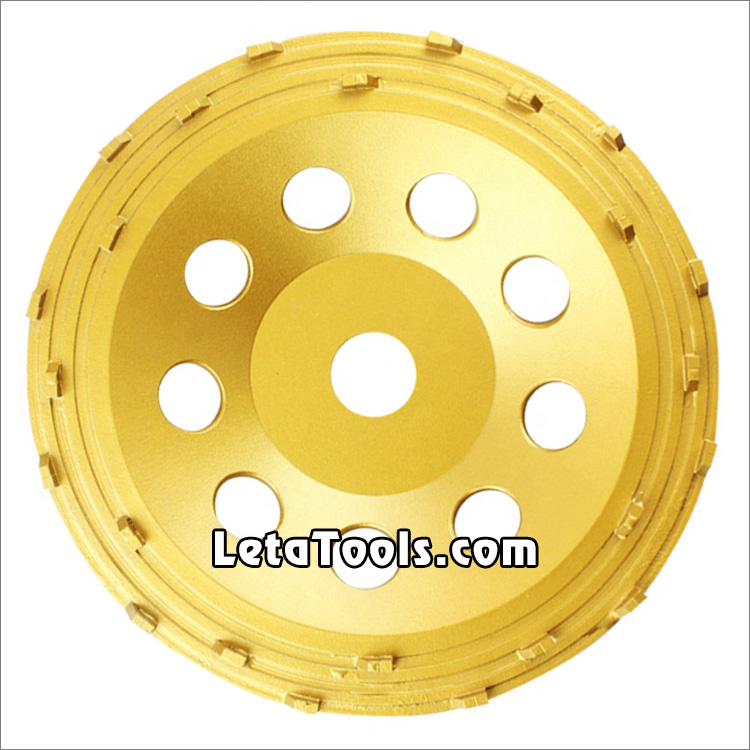

PCD Grinding Cup Wheels - 3 Rows



PCD cup wheel is a perfect tool for sharp removal of heavy epoxy, coatings, mastic, glues or even fast stock removal of concrete, which is designed for fast removing hard and tacky surfaces including: waterproofing membrane, pool deck coating, thick mastic, old and new epoxy coating, paint, VCT/carpet glues, etc., usually the PCD segment scrapes and rips the toughest coating from the surface quickly and effectively with no loading up.



Manufactured from the highest quality polycrystalline diamonds. This tools scraping action eliminates gumming up of segments and maximizes production.



Diameter: 5"(125mm)-10"(250mm).



Dry or wet use.



May be used on angle grinders or floor grinders.







Code No.

Diameter

Back Hole PCD Size PCD No.
LT-GCW-PCD06-01

105mm(4")

5/8"-11

M14

20mm

22.23mm

8*3*3mm

x
LT-GCW-PCD06-02

115mm(4.5")

x
LT-GCW-PCD06-03

125mm(5")

5*3
LT-GCW-PCD06-04

150mm(6")

5*3

LT-GCW-PCD06-05

180mm(7")

6*3

LT-GCW-PCD06-06

200mm(8")

8*3

LT-GCW-PCD06-07

250mm(10")

10*3





The about specifications & photos is for reference, other specification may be available as per customer's demand.
