Diamond

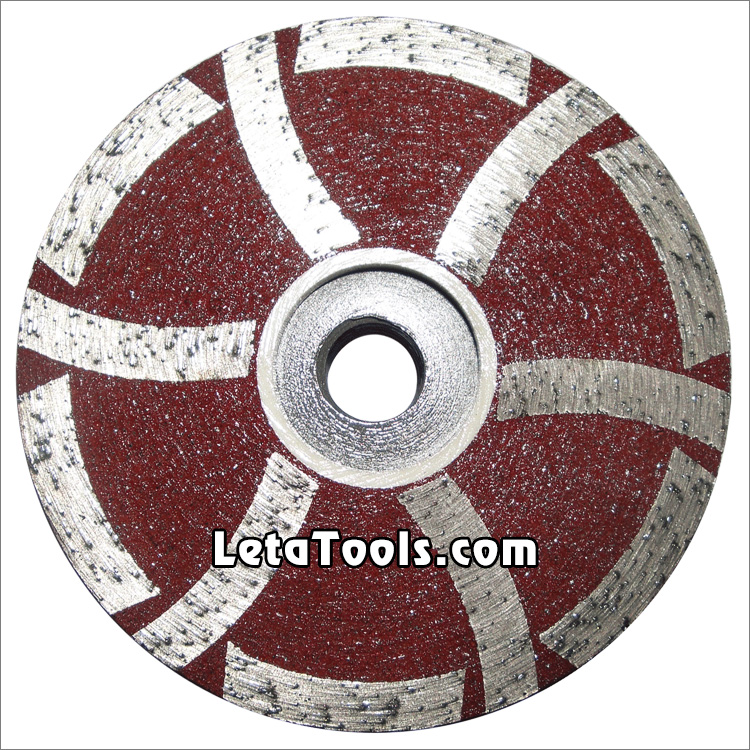

Grinding Cup Wheels - Resin Filled L Segments
Diamond
cup wheels with metal and resin bond turbo wave continuous rim
segments for grinding various stone such as granite marble, sandstone,
limestone, artificial stone, etc., ideal for smoothing and
shaping as well as stock removal.
This type cup wheels are
perfect for chip free grinding and honing. Soft bond diamond
segments are specifically placed on the cup wheel for maximum speed,
and resin is filled to eliminate bouncing, or "biting" into the
material-the things that cause chipping.
Wet use only.
Bond type: soft, medium, hard.
Regular grit: rough(#30/40), medium(#60/80), smooth(#100/120).
Used on high-speed electric grinder and pneumatic tools.
The hot-press sintered segments offers efficient and steady performance,
#30 for the first step coarse grinding, #50/60 for the medium next step,
#100/120 for fine grinding, Grit #100/120 diamond grits provide great
finishing and much longer working life.
If you choose aluminum base, which can reduce the noise and the
deadweight of the grinding wheel as well as the energy consumption of
the angle grinder, and the grinding effect is excellent.
|
Code No. |
Diameter |
Connection |
Segment Height |
Base |
Grit |
|
CD-GCW-S10-01 |
105mm(4") |
5/8"-11
M14
20mm
22.23mm |
5mm |
Steel Body |
Rough (#30/40)
Medium (#60/80)
Smooth (#100/120) |
|
CD-GCW-S10-02 |
115mm(4.5") |
|
CD-GCW-S10-03 |
125mm(5") |
The about specifications & photos is for reference, other specification may be
available as per demand.
Connection(bore) type of cup wheels:
|
M14 or 5/8"-11 |
22.23/20mm |
Snail Lock |
|
|
| Warm Prompt: |
For your personal
protection, to take good care of your
eyes/ears/face/hands/body/etc., before you start working we
recommend that you wear safety glasses, dust aspirators,
welding gloves, safety shoes, and other appropriate
equipment.
|
