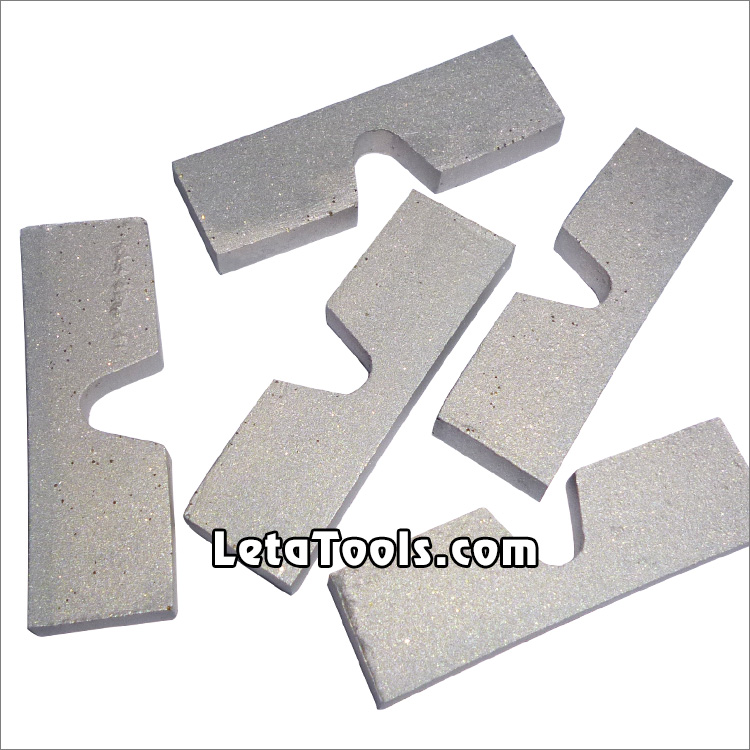

Diamond Segments of Wall Saw Blades - V Slot Shape



This 12mm height with V slot shape segments are widely used for replacement of used diamond segments on wall saw blades which are designed to cut openings in walls, floors, bridges, docks, dams, etc.



They are capable of cutting through steel reinforcement in all types of concrete, stone, bricks.



V slot is benefit for fast coolant and speed cutting.



Welding method: laser welding or high frequency silver brazing.



Warning: no fire-welding.







Code No.

Diameter

(mm/inch)

Segment Size

(mm)

Segment No.

(pcs/set)

LT-DSWS-02-01

450mm(18")

40x4.6x12

24
LT-DSWS-02-02

500mm(20")

40x4.6x12

28
LT-DSWS-02-03

600mm(24")

40x4.6x12

34
LT-DSWS-02-04

650mm(26")

40x4.6x12

36
LT-DSWS-02-05

700mm(28")

40x4.6x12

40
LT-DSWS-02-06

750mm(30")

40x4.6x12

42
LT-DSWS-02-07

800mm(32")

40x4.6x12

46
LT-DSWS-02-08

900mm(36")

40x4.6x12

52
LT-DSWS-02-09

1000mm(40")

40x4.6x12

58
LT-DSWS-02-10

1050mm(42")

40x4.6x12

60
LT-DSWS-02-11 1100mm(44")

40x4.6x12

62
LT-DSWS-02-12

1200mm(48")

40x4.6x12

70





The about specifications & photos is for reference, other specification may be available as per demand.
