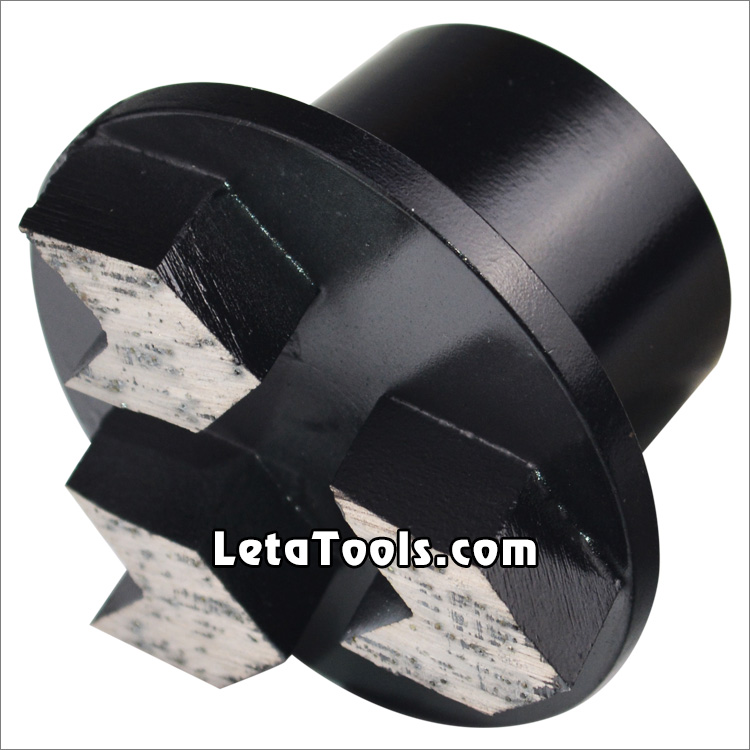

Diamond
Grinding Plugs - Arrow Segments
|
Diamond
grinding plugs with 3-6pcs arrow shape diamond segments, usually used on
Prepmaster/Floorex/Terrcoo floor grinders for aggressive concrete
cleaning, smoothing, and coating removal, the segment helps transition
over joints and leave a smooth profiles, remove dry or wet, rough &
uneven spots on concrete or terrazzo surfaces.
50mm plug with 74mm
plate, with or without water hole, cone shape body, easy to install
and remove.
Bond type: soft, medium, hard, available in a variety of grit sizes to
suit your extreme application, ranges from #6 up to #300.
Fast grinding speed, high performance and long life. |
|
5pcs Segments |
|
6pcs Segments |
|
Code No. |
Diameter |
Grit |
Segment Height |
Segment No. |
|
CD-DP-02-06 |
74mm (3") |
#6, #16, #30, #60, #80, #100, #120... |
8-10mm |
6pcs |
|
CD-DP-02-05 |
74mm (3") |
#6, #16, #30, #60, #80, #100, #120... |
8-10mm |
5pcs |
|
CD-DP-02-03 |
74mm (3") |
#6, #16, #30, #60, #80, #100, #120... |
8-10mm |
3pcs |
The about specifications & photos is for reference, other specification
may be available as per demand.
