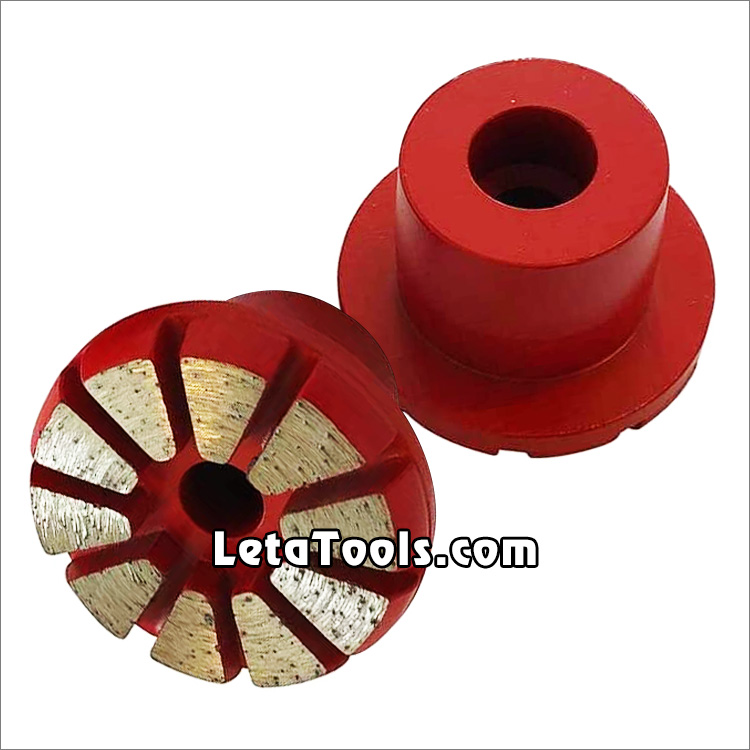

Diamond Grinding Plugs Trapezoid Segments for Concrete

Diamond grinding plugs with 8-10pcs trapezoid shape diamond segments, usually used on Prepmaster/Floorex/Terrcoo floor grinders for aggressive concrete cleaning, smoothing, and coating removal, the segment helps transition over joints and leave a smooth profiles, remove dry or wet, rough & uneven spots on concrete or terrazzo surfaces.

50mm plug with 74mm plate, with or without water hole, cone shape body, easy to install and remove.

Bond type: soft, medium, hard, available in a variety of grit sizes to suit your extreme application, ranges from #6 up to #300.

Fast grinding speed, high performance and long life.

8pcs Segments

Code No.	Diameter	Grit	Segment Height	Segment No.
CD-DP-03-08	74mm (3")	#6, #16, #30, #60, #80, #100, #120...	8mm/10mm	8pcs
CD-DP-03-10	74mm (3")	#6, #16, #30, #60, #80, #100, #120...	8mm/10mm	10pcs

The about specifications & photos is for reference, other specification may be available as per demand.
