Diamond

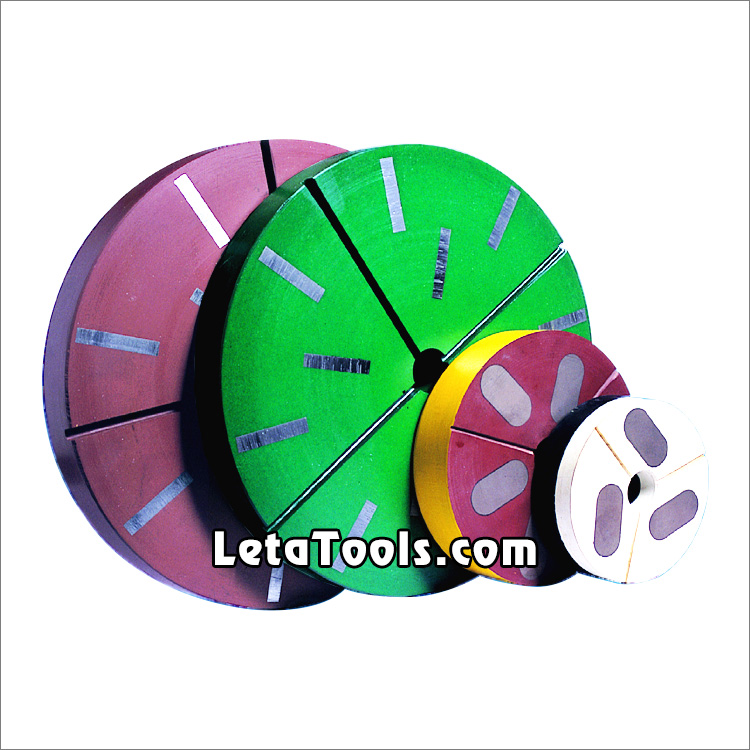

Polishing Discs for Granite Marble various Stones
Metal Bond & Resin Filled
Metal bond & resin filled diamond polishing discs for rough-polishing granite
marble various stone slab surface in automatic grinding machines or
single head polishing machines.
Wet use only with sufficient water.
Characteristic : high polishing efficiency, strong abrasion strength, it
can improve the productivity and slab quality, besides making the more
calm and elastic during working.
Code No.
Diameter
Segment Size
Grit No.
Thickness
Hole
Back
LT-DPD-02-100
100mm(4")
40*8*10mm
#50, #100, #200, #400
23mm
25mm
plastic back with 4 M8 screw holes
LT-DPD-02-125
125mm(5")
LT-DPD-02-150
150mm(6")
LT-DPD-02-200
200mm(8")
Suggested Disc
Abrasives Sequence for Granite Line Polishing Machine
Heads
12 Heads
16 Heads
20 Heads
Head 1
#50-Metal Disc
#50-Metal Disc
#50-Metal Disc
Head 2
#50
#50
#50
Head 3
#200
#200
#100
Head 4
#200
#200
#100
Head 5
#400
#200
#200
Head 6
#500-Resin Disc
#400
#200
Head 7
#500
#400
#200
Head 8
#800
#500-Resin Disc
#400
Head 9
#1500
#500
#400
Head 10
Buff-Polishing Buff
#800
#500-Resin Disc
Head 11
Buff
#800
#500
Head 12
Buff
#1500
#800
Head 13
#1500
#800
Head 14
Buff-Polishing Buff
#1500
Head 15
Buff
#1500
Head 16
Buff
#3000
Head 17
Buff-Polishing Buff
Head 18
Buff
Head 19
Buff
Head 20
Buff
The about specification & photo is for reference, other specification
may be available as per demand.
