Diamond

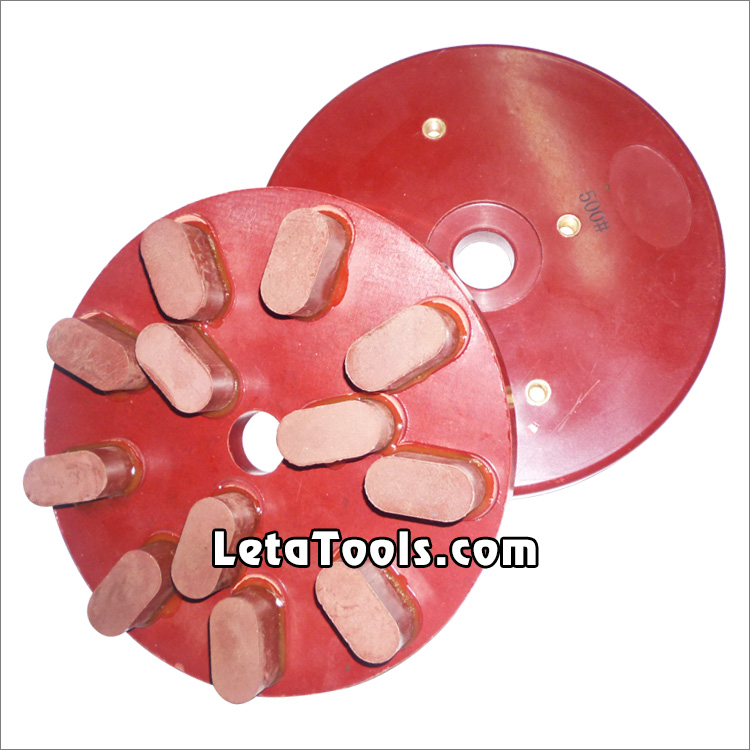

Resin Bond Polishing Discs for Granite Marble various Stones
Resin bond diamond disc which is made by using plastic disc with resin
segments for smooth polishing granite marble various stone slab surface
in automatic grinding machines or single head polishing machines.
The overall polishing effect can be reached easily if it is used in
conjunction with metal bond grinding disc for initial grinding.
Different formulas of resin segment can be offered, such as sharp type
or durable type.
Wet use only with sufficient water.
Code No.
Diameter
Segment Size
Segment No.
Grit No.
Back
Segment
Type
LT-DPD-03-150
150mm(6")
42*20*20mm
6
#500, #800, #1500, #3000
plastic base with screw holes
Resin Bond
LT-DPD-03-200
200mm(8")
42*20*20mm
12
LT-DPD-03-250
250mm(10")
42*20*20mm
15
Suggested Disc
Abrasives Sequence for Granite Line Polishing Machine
Heads
12 Heads
16 Heads
20 Heads
Head 1
#50-Metal Disc
#50-Metal Disc
#50-Metal Disc
Head 2
#50
#50
#50
Head 3
#200
#200
#100
Head 4
#200
#200
#100
Head 5
#400
#200
#200
Head 6
#500-Resin Disc
#400
#200
Head 7
#500
#400
#200
Head 8
#800
#500-Resin Disc
#400
Head 9
#1500
#500
#400
Head 10
Buff-Polishing Buff
#800
#500-Resin Disc
Head 11
Buff
#800
#500
Head 12
Buff
#1500
#800
Head 13
#1500
#800
Head 14
Buff-Polishing Buff
#1500
Head 15
Buff
#1500
Head 16
Buff
#3000
Head 17
Buff-Polishing Buff
Head 18
Buff
Head 19
Buff
Head 20
Buff
The about specification & photo is for reference, other specification
may be available as per demand.
