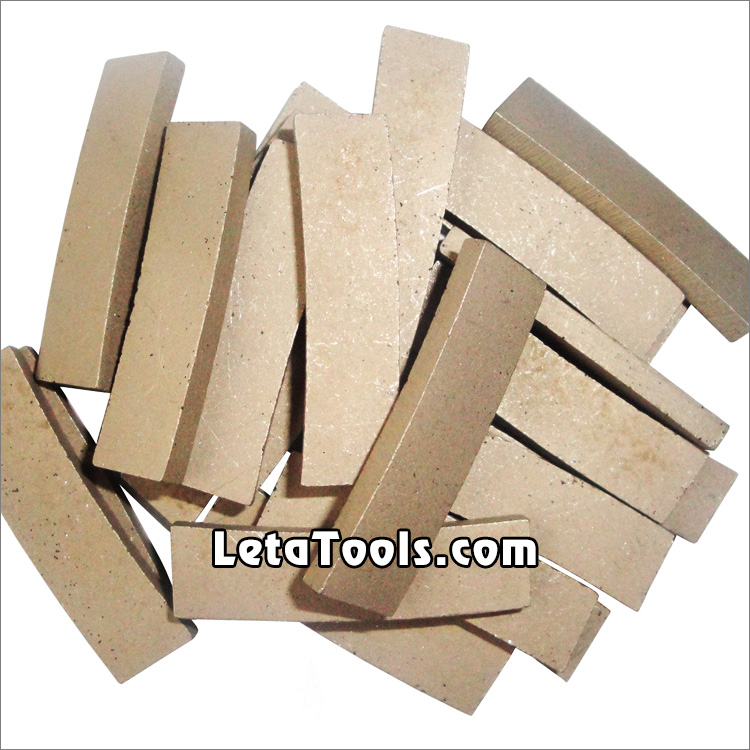

Diamond Segments of Circular Saw Blade for Marble Cutting - Normal Flat Shape
Diamond
segment with normal flat shape of 250-800mm circular saw blades for
slab edge cutting of marble, limestone, slate, various soft stone without quartz.
Normal flat means speciation is simple and "no grooves/slot or special shapes".
The most demanding sizes of marble segments are for
14”/350mm and 16”/400mm of circular saw blades to cut 2-5cm thickness marble
and soft stone slabs or
strips.
Wet use only with sufficient water.
Welding method: Silver welding
by high frequency welding machine.
Code No.
Diameter
(mm/Inch)
Segment Size (mm)
Segment No.
(pcs/set)
Length
Width
Height
LT-DSMS-01-250
250mm(10")
40
2.6/2.8
8/10
18
LT-DSMS-01-300
300mm(12")
40
3.0/3.2
8/10
21
LT-DSMS-01-350
350mm(14")
40
3.2/3.4
8/10
24/25
LT-DSMS-01-400
400mm(16")
40
3.6
8/10
28
LT-DSMS-01-450
450mm(18")
40
4.0
8/10
32
LT-DSMS-01-500
500mm(20")
40
4.2
8/10
36
LT-DSMS-01-550
550mm(22")
40
4.4
8/10
38
LT-DSMS-01-600
600mm(24")
40
4.6
8/10
42
LT-DSMS-01-625
625mm(25")
40
4.6
8/10
42
LT-DSMS-01-700
700mm(28")
40
5.0
8/10
50
LT-DSMS-01-725
725mm(29")
40
5.5
8/10
50
LT-DSMS-01-800
800mm(32")
40
5.2
8/10
46
The about specifications & photos is for reference, other specification
may be available as per demand.
