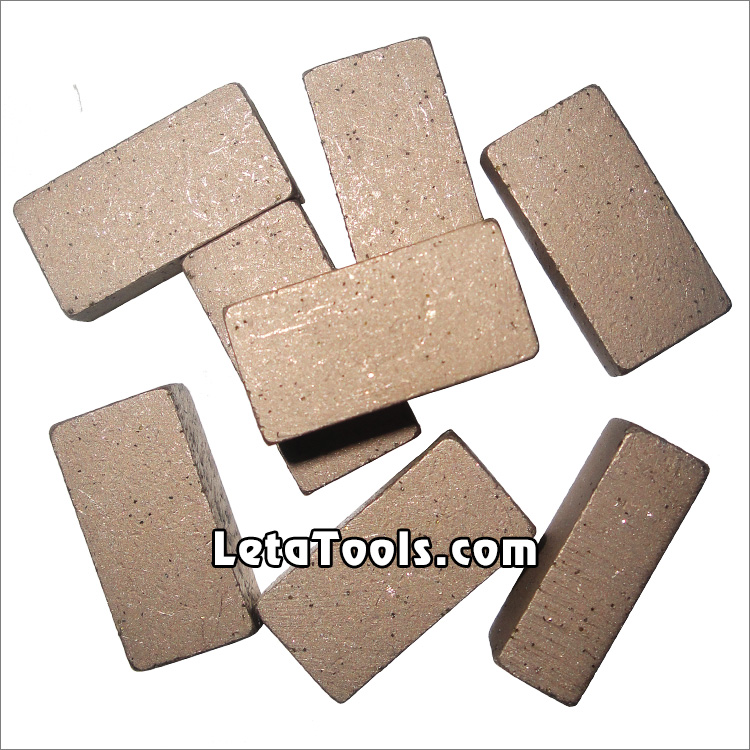

Diamond Segments of Saw Blade for Marble Block Cutting
Sandwich Structure, Box Shape
Diamond
Segment with sandwich structure and box shape of 900-2000mm circular saw blades for block cutting of marble,
limestone, slate, various soft stone without quartz.
Wet use only with sufficient water,
coolant material put into water is benefit for fast cutting.
Welding method:
by high frequency silver welding.
Code No.
Diameter
(mm)
Segment Dimension
(L × W × H)
Segment No.
Length
Width
Height
LT-DSMB-01-900
900
24/30/40
6.5
8/10/12
64
LT-DSMB-01-1000
1000
24/30/40
7.0
8/10/12
70
LT-DSMB-01-1200
1200
24/30/40
7.5
8/10/12
80
LT-DSMB-01-1350
1350
24/30/40
8.0
8/10/12
88
LT-DSMB-01-1400
1400
24/30/40
8.5
8/10/12
96
LT-DSMB-01-1600
1600
24/30/40
9.0
8/10/12
108
LT-DSMB-01-1800
1800
24/30/40
9.5
10/12
120
LT-DSMB-01-2000
2000
24/30/40
10.5
10/12
128
The about specifications & photos is for reference, other specification
may be available as per demand.
