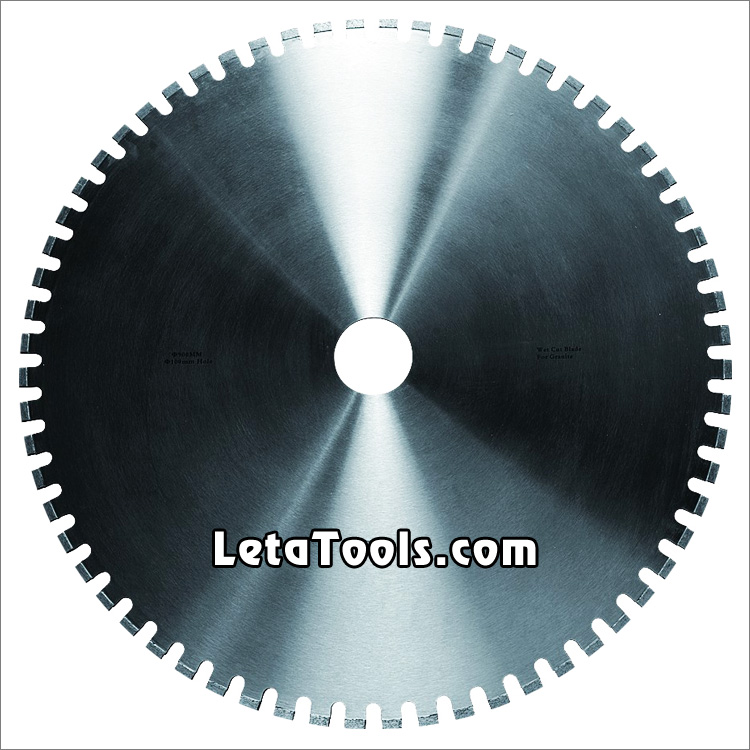

Granite Block Cutting Diamond Saw Blades 1000/1200/1600/2000/3000mm

Suitable for bridge block cutter, gantry block cutting machine or single arm stone cutting machines, cutting marble blocks to slabs or tiles (stripes).

Welding method: silver welded by high frequency welding machine.

Wet use only with sufficient water, Fast & Smooth cutting, long life, high ratio of performance to price.

Diameter (mm)	Segment Dimension (L × W × H)			Segment No.	Segment Structure
Diameter (mm)	Length	Width (Box Type)	Height	Segment No.	Segment Structure
900	24	6.5	8/10/12	64	Sandwich
1000	24	7.0	8/10/12	70
1200	24	7.5	8/10/12	80
1300	24	8.0	8/10/12	88
1350	24	8.0	8/10/12	88
1400	24	8.5	8/10/12	96
1600	24	9.0	8/10/12	104/108
1800	24	9.5	10/12	120
2000	24	10.5	10/12	128

The following are the different shapes design of diamond segments:

LT-DSMB-01

Box Shape, 24mm Length

LT-DSMB-02

Taper Shape, 24mm Length

LT-DSMB-03

40mm Length

LT-DSMB-04

W Top (Easy opening)

LT-DSMB-05

Matrix Design

The above specifications & photo is for reference, other Specifications may be available as per demand.

Remarks:

Marble block saw blade refers to diamond saw blades used for marble block cutting purpose. They are in bigger diameters from 900mm to 2000mm mostly, in which the most popular blade diameter are 900mm, 1200mm and 1600mm for cutting tiles from 30x30cm to 60x60cm, which is more required from the market.

Diamond segments for marble block cutting are mostly in yellow color which is the main color of copper based metal bond, some are silver color based on cobalt bond, and there is soft to harder bond for cutting different hardness of marbles. It also works for limestone, travertine and other soft stones. As per steel blank design, there is 40mm length segments and 24mm length segments for choice. Marble block cutter segments mostly cuts for long, so the segment height is generally in 8mm and 10mm, and some customers prefer 13mm height for single blade block cutter.

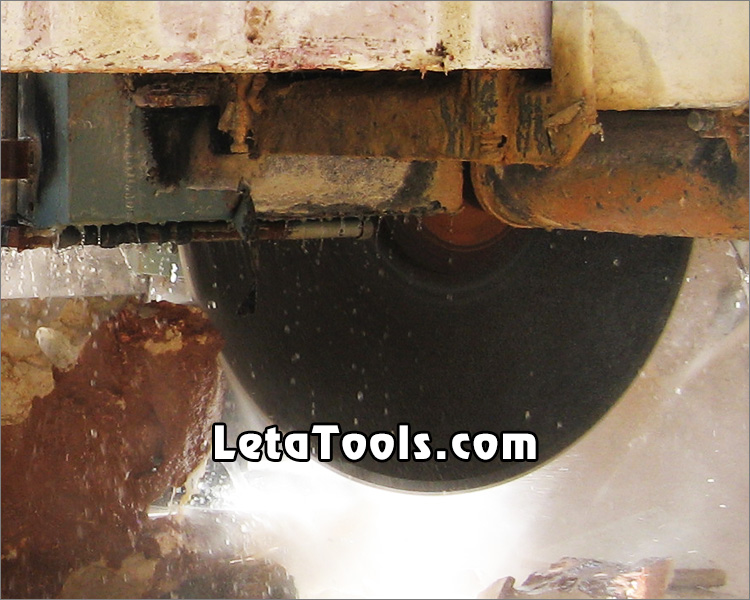

Diamond blade for marble block cutting is mostly used on bridge block cutter with a horizontal blade to cut the bottom of slabs or strips from the marble block. Most of the marble block cutter is equipped with a horizontal block cutter at diameter of 350mm, 400mm or 500mm.
