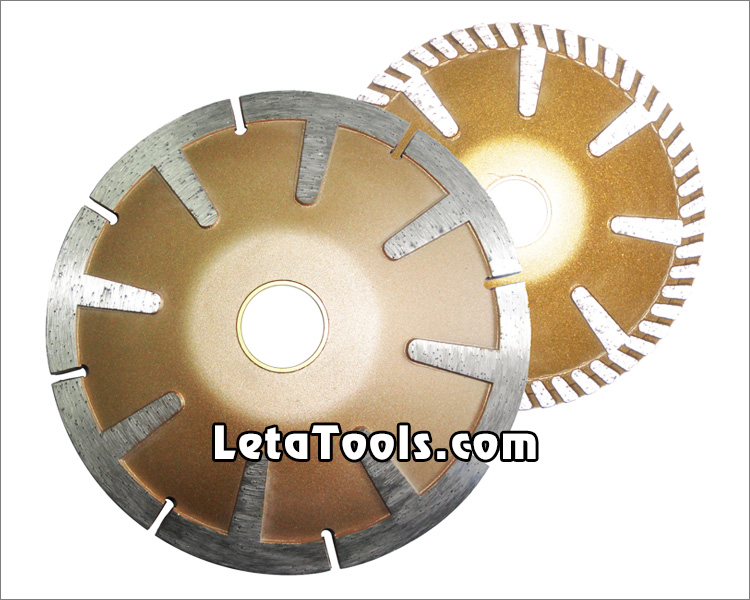

Diamond Concave Saw Blades

Diamond concave saw blades can be used in radius cutting, diameter from 4"(105mm) - 7"(180mm) for dry cutting circles or curved line on the slab, countertops, etc. The protection on the both in- and-out side provide faster cutting on various stone or granite, fast cutting and good life time.

1. Producing tech.: Hot sintered;

2. Outer diameter: 105mm, 115mm, 125mm, 150mm, 180mm;
3. Segment Height: 8mm;
4. Bore Size: 16mm, 20mm or 22.23mm;
5. Application: Nature stone like granite, marble. Engineered stone, quartz, etc;
6. Dry or wet use.

Diameter	Bore (mm)	Segment Type	Segment No.	Segment Height
105mm(4")	16mm 20mm 22.23mm(7/8")	T Shape Continuous Rim with protecting teeth	8	8mm
115mm(4.5")			9
125mm(5")			9/10
150mm(6")			12
180mm(7")			14

LT-CSB-01

T Shape Segmented

LT-CSB-02

Turbo Continuous Rim with

Protecting Teeth

Our concave blade is a good choice for your cutting sinkholes or other inside arcs. The blades use soft bond for fast aggressive cuts on various stones including hard granite. They can be run on most electric grinders and will cut through either 2cm or 3cm stone. They have core protection on the inside and the outside of the blade to help reduce heat build up and to prevent binding. They will also give you a smoother finish.

Warm Prompt:

For your personal protection, to take good care of your eyes/ears/face/hands/body/etc., before you start working we recommend that you wear safety glasses, dust aspirators, welding gloves, safety shoes, and other appropriate equipment.
