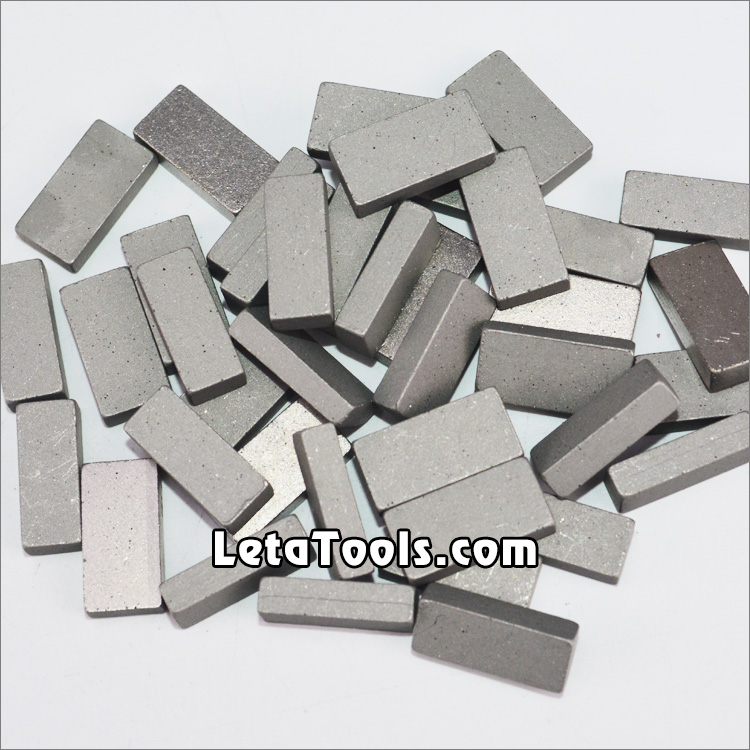

Diamond Segments of Gangsaw Frame Saw Blades for Marble Block Cutting

For the precision cutting of natural stones, the gang saw blades of variable dimensions and capacities are serving all types of marbles and other material plants (except granite) for well shaped blocks.

Usually there are 60-80pcs blades of one gang saw machine, also the segments is used for one-blade marble block dressing machine.

Welding method: fire welding or by high frequency welding machine with silver brazing material.

Code No.	Segment Specification (mm)			Steel Core Thickness	Purpose	Blades No. per Machine
Code No.	Length	Width	Height	Steel Core Thickness	Purpose	Blades No. per Machine
LT-DSM-GS-01C	20	3.5/4.0 4.0/4.5 4.5/5.0	8/10	2.5/3.0/3.5mm	Block Slabs Cutting	60-80pcs
LT-DSM-GS-01D	24	4.5/5.0 5.0/5.5	10/12	3.0/3.5mm	Block Dressing	1pc

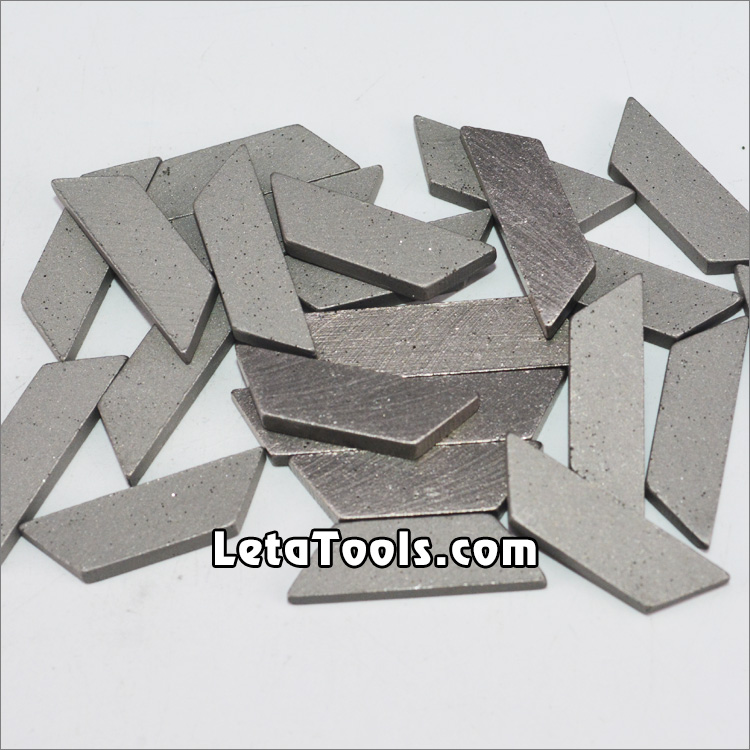

Diamond Segments of Gangsaw(Frame Saw Blades) for Marble Cutting - Trapezoid Shape

This type segments is usually for cutting abrasive marble or marble with lots of cavities.

Code No.	Segment Specification (mm)			Steel Core Thickness	Purpose	Blades No. per Machine
	Length	Width	Height
LT-DSM-GS-02S	18/29	3.0/3.5/4.0/4.5	8.5	2.5/3.0/3.5mm	Block Slabs Cutting	60-80pcs
LT-DSM-GS-02L	30/40	3.0/3.5/4.0/4.5	9	2.5/3.0/3.5mm

The about specifications & photos is for reference, other specification may be available as per demand.
