Diamond Wire Saw for Granite profiling cutting

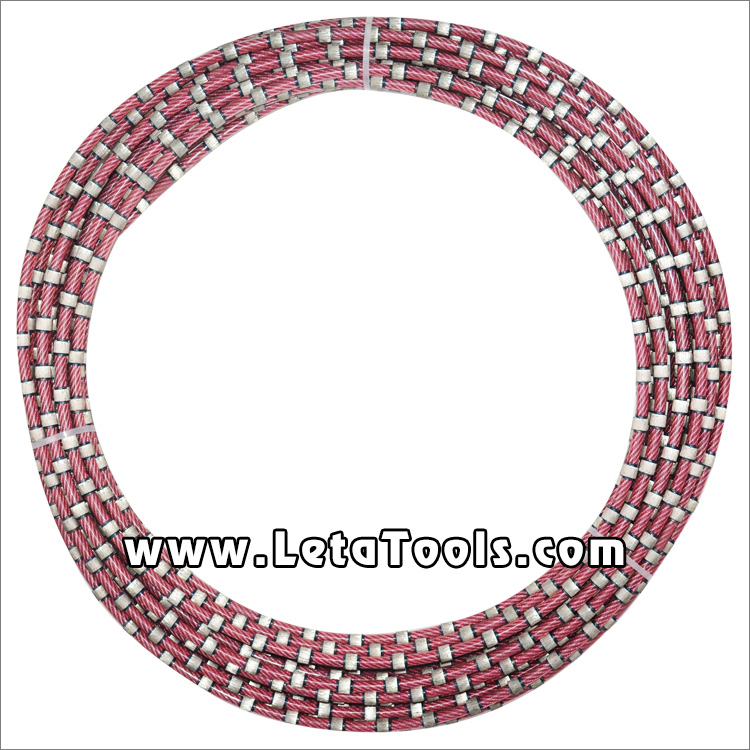

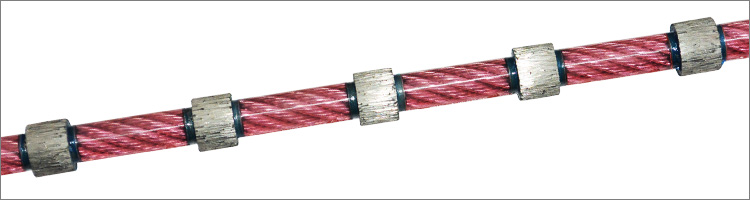

This plastic coating type diamond wire with sintered diamond beads, mostly with 7.2mm-9mm diameter which could be widely used for granite stone cutting and profiling as well at stationary in hour diamond wire saw machine at stone factory. It could be used to make stone figure sawing, edge profiling, shaping and stone cutting as well.

They have following specialties:

· To cut special shape in short time;
· Smooth cutting & more precise;
· Low power consume and less raw material waste;
· Low noise and Less pollution;
· Easy manipulation and with low cost.

Code No.	Diameter	Fixing Type	Beads No. pcs/M	Granite Hardness	Linear Speed (m/s)	Cutting Speed (mm/min)	Wire Life(㎡/m)
LT-DWSGP9.0	Ф9.0mm	Plastic	37pcs	Class 1-2 Class 3-4 Class 5	26-30 22-26 18-22	10-15 5-10 4-7	8-12 6-10 4-6
LT-DWSGP8.8	Ф8.8mm	Plastic
LT-DWSGP8.5	Ф8.5mm	Plastic
LT-DWSGP8.2	Ф8.2mm	Plastic
LT-DWSGP7.2	Ф7.2mm	Plastic

Smaller diameter of diamond beads allows to reduce the processing waste, reduce energetic consumption increasing the efficiency if the process and to minimize the quantity of the raw material processed.

The about specifications & photos is for reference, other specification may be available as per customer's demand.

Please inform the following if you would like to place order:

Code No. of Diamond Wire

Diameter of the Wire (9.0mm, 8.8mm, 8.5mm, 8.2mm or 7.2mm)

Wire Type (Plastic)

Granite Type (Hard, Medium, Soft, or Abrasive)

Order Quantity (How many Meters)

Wire Saw Machine Power (How many KW or HP of the motor)

Expected cutting speed and life(M2)

Expected shipping date
