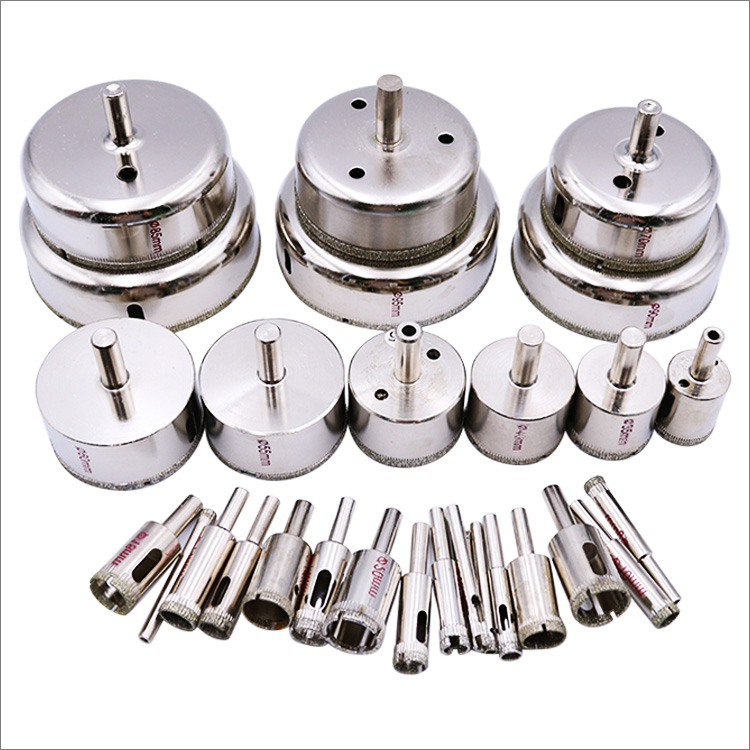

Electroplated Diamond Drill Bits for Stone Ceramic Glass Drilling

Electroplated diamond core drill bits are also called diamond hole saws, which is suitable for electric portable angle grinder machine or drilling machines, they are mainly used for precise hole drilling in the block of glass, crystal, fiberglass, tiles of ceramic and porcelain, marble, soft stone and other composite materials, great for Home, Hobby, Craft, Construction, etc.

Dry(don't recommend) or wet use(water coolant is much better for drilling performance).

Instructions for use:

1. When operating, first incline the drill bit at 45 degrees, and slow down the speed of the electric drill, then erect the electric drill.

2. When it is about to drill through, slow down the speed again.
3. During the whole drilling process, keep adding water to cool.

Code No.	Diameter(mm)	Length(mm)	Diamond Height	Diamond Grit	Connection
LT-DDB-S-01-003	3	30mm 40mm 60mm 75mm 80mm 90mm 100mm or as per demand	3-10mm or as per demand	#60/80/100/120	5/8"-11 M14 1/2 Gas Straight Shank (Round or Hexagonal)
LT-DDB-S-01-004	4
LT-DDB-S-01-005	5
LT-DDB-S-01-006	6
LT-DDB-S-01-008	8
LT-DDB-S-01-013	13
LT-DDB-S-01-018	18
LT-DDB-S-01-020	20
LT-DDB-S-01-022	22
LT-DDB-S-01-025	25
LT-DDB-S-01-027	27
LT-DDB-S-01-030	30
LT-DDB-S-01-035	32
LT-DDB-S-01-036	36
LT-DDB-S-01-038	38
LT-DDB-S-01-040	40
LT-DDB-S-01-044	44
LT-DDB-S-01-046	46
LT-DDB-S-01-051	51
LT-DDB-S-01-056	56
LT-DDB-S-01-063	63
LT-DDB-S-01-066	66
LT-DDB-S-01-071	71
LT-DDB-S-01-076	76
LT-DDB-S-01-083	83
LT-DDB-S-01-089	89
LT-DDB-S-01-096	96
LT-DDB-S-01-102	102
LT-DDB-S-01-108	108
LT-DDB-S-01-114	114
LT-DDB-S-01-120	120
LT-DDB-S-01-127	127
LT-DDB-S-01-132	132
LT-DDB-S-01-152	152
LT-DDB-S-01-159	159
LT-DDB-S-01-168	168
LT-DDB-S-01-180	180
LT-DDB-S-01-200	200
LT-DDB-S-01-230	230
LT-DDB-S-01-250	250

The about specifications & photos is for reference, other specification may be available as per customer's demand.

Note:

1. After opening installation, commissioning idling should observe whether the beating, then normal operation, the best results;
2. Into the hole to have a smooth time, please do not exert pressure on the side and curves spud;
3. Have enough openings for cooling and lubrication to reduce wear and coating products off;
4. Non-occurrence of high-temperature drilling dry rub, causing severe wear affect the results;
5. The operator must wear safety protective equipment to ensure safe operation.

Electroplated Diamond Core Drill Bits have a single layer of diamond powder on the tools, once the layer of diamond is worn down, the tools life is end and you need to use a new one. The sharpness of electroplate diamond tools is better than vacuum brazed diamond tools for drilling marble, ceramic, soft tile and similar materials. Special, electroplated diamond core drill bits need water when using, some place cannot find water, it’s not convenience for some customers. It can make any diamond grit as the customer’s request. It is not limited on the mold. The customer can make their own style.

Connection(Bore) Type of Drill Bits


M14 or 5/8"-11	1/2 Gas	Round Shank	Hexagonal Shank	1-1/4" UNC
