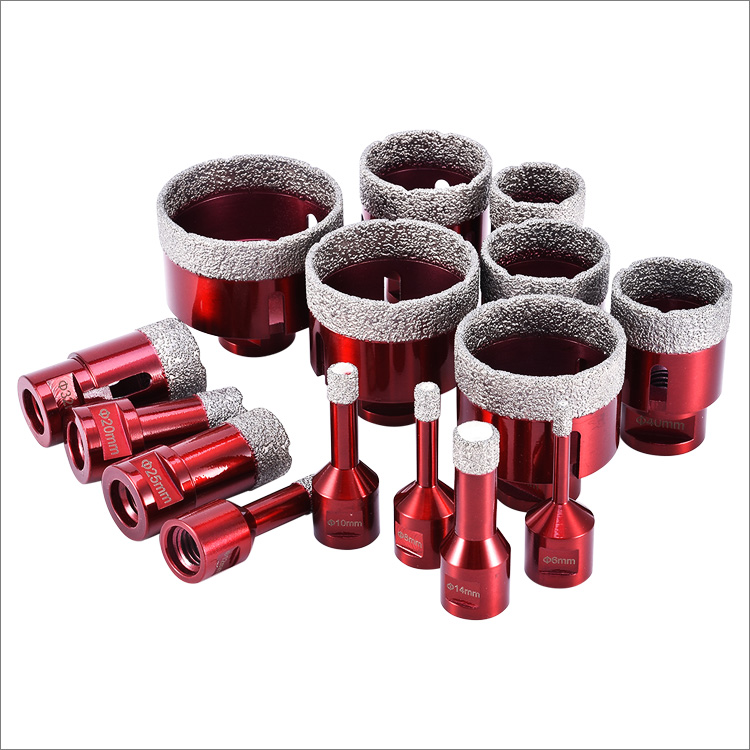

Vacuum Brazed Diamond Drill Bits for Stone Ceramic Concrete



Vacuum brazed diamond core drill bits are also called diamond hole saws, which is suitable for electric portable angle grinder or drilling machines for drilling ceramic, porcelain, marble, granite, stone, concrete and other composite materials, great for Home, Hobby, Craft, Construction, etc.



Dry or wet use, water coolant will be much better for drilling performance.



Features:

1. Fast and Smooth drilling;
2. Long lifetime;
3. Less Chipping;
4. Minimizing any breakage;
5. Less loss of material;
6. Less heat generation;
7. Better finish quality.



Instructions for use:



1. When operating, first incline the drill bit at 45 degrees, and slow down the speed of the electric drill, then erect the electric drill.

2. When it is about to drill through, slow down the speed again.
3. During the whole drilling process, keep adding water to cool.







Code No. Diameter(mm) Length(mm) Diamond Height Diamond Grit Connection
LT-DDB-S-02-006 6

30mm

40mm

60mm

75mm

80mm

90mm

100mm

or

as per demand



5-15mm

or

as per demand



#30/40/60/80/100/120

5/8"-11

M14

1/2 Gas

Straight Shank

(Round or Hexagonal)

LT-DDB-S-02-008 8
LT-DDB-S-02-010 10
LT-DDB-S-02-012 12
LT-DDB-S-02-014 14
LT-DDB-S-02-016 16
LT-DDB-S-02-018 18
LT-DDB-S-02-020 20
LT-DDB-S-02-022 22
LT-DDB-S-02-025 25
LT-DDB-S-02-027 27
LT-DDB-S-02-030 30
LT-DDB-S-02-032 32
LT-DDB-S-02-035 35
LT-DDB-S-02-038 38
LT-DDB-S-02-040 40
LT-DDB-S-02-045 45
LT-DDB-S-02-050 50
LT-DDB-S-02-055 55
LT-DDB-S-02-060 60
LT-DDB-S-02-065 65
LT-DDB-S-02-070 70
LT-DDB-S-02-075 75
LT-DDB-S-02-083 83
LT-DDB-S-02-087 87
LT-DDB-S-02-092 92
LT-DDB-S-02-102 102
LT-DDB-S-02-107 107
LT-DDB-S-02-110 110
LT-DDB-S-02-120 120
LT-DDB-S-02-127 127
LT-DDB-S-02-132 132
LT-DDB-S-02-152 152
LT-DDB-S-02-159 159
LT-DDB-S-02-168 168
LT-DDB-S-02-180 180
LT-DDB-S-02-200 200
LT-DDB-S-02-230 230
LT-DDB-S-02-250 250





The about specifications & photos is for reference, other specification may be available as per customer's demand.





Vacuum brazed diamond tools use the special metal bonding and under the vacuum environment make the diamond brazed on the tools, So it will be more fastness than the electroplated diamond tools. More importantly, it can dry use even work at the poor environment. As it’s high efficiency, the working life is also longer than the electroplated diamond tools.





Connection(Bore) Type of Drill Bits





M14 or 5/8"-11 1/2 Gas Round Shank Hexagonal Shank 1-1/4" UNC
