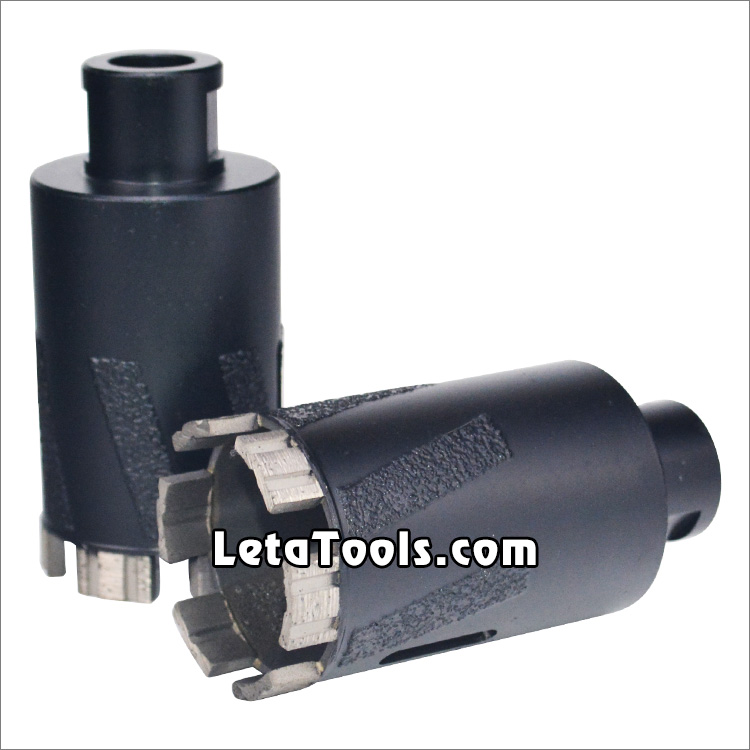

Diamond Drill Bits for Granite Drilling with Turbo Segments

Diamond drill bits(sometimes called diamond hole saws) with turbo segments and steel pipe side diamond vacuum brazed for drilling stone ceramic concrete brick etc., common uses would be small projects such as drilling out sink holes for faucets.

Welding method: diamond segments silver welded or laser welded.

Dry or wet use(water coolant is much better for drilling performance and working life).

Suitable for stand drilling machines or electrical hand-held drillers or CNC machines.

Long steel pipe is available, pipe side without diamond is also available.

Code No.	Diameter	Segment Size	Pipe Length	Welding Method	Adaptor
LT-DDB-S-07-020	20mm (3/4”)	16x2.5x10	4"(100mm) or as per demand	Silver Welded or Laser Welded	5/8"-11 M14 1/2 Gas Straight Shank (Round, Hexagonal, or Taper round)
LT-DDB-S-07-022	22mm (7/8”)	16x2.5x10
LT-DDB-S-07-025	25mm (1”)	16x2.5x10
LT-DDB-S-07-029	29mm (1-1/8")	16x2.5x10
LT-DDB-S-07-032	32mm (1-1/4”)	16x3x10
LT-DDB-S-07-035	35mm (1-3/8”)	16x3x10
LT-DDB-S-07-038	38mm (1-1/2”)	16x3x10
LT-DDB-S-07-042	42mm (1-5/8")	16x3x10
LT-DDB-S-07-045	45mm (1-3/4”)	16x3x10
LT-DDB-S-07-050	50/51mm (2”)	16x3x10
LT-DDB-S-07-057	57mm (2-1/4”)	22x3.5x10
LT-DDB-S-07-060	60mm (2-3/8”)	22x3.5x10
LT-DDB-S-07-063	63mm (2-1/2”)	22x3.5x10
LT-DDB-S-07-070	70mm (2-3/4”)	22x3.5x10
LT-DDB-S-07-076	76mm (3”)	22x3.5x10
LT-DDB-S-07-080	80mm (3-1/8”	22x3.5x10
LT-DDB-S-07-089	89mm (3-1/2”)	22x3.5x10
LT-DDB-S-07-102	102mm (4”)	22x3.5x10
LT-DDB-S-07-110	110mm (4-3/8”)	22x3.5x10
LT-DDB-S-07-127	127mm (5”)	24x4x10

The about specifications & photos is for reference, other specification may be available as per customer's demand.

Connection(Bore) Type of Drill Bits


M14 or 5/8"-11	1/2 Gas	Round Shank	Hexagonal Shank	Taper Round Shank
