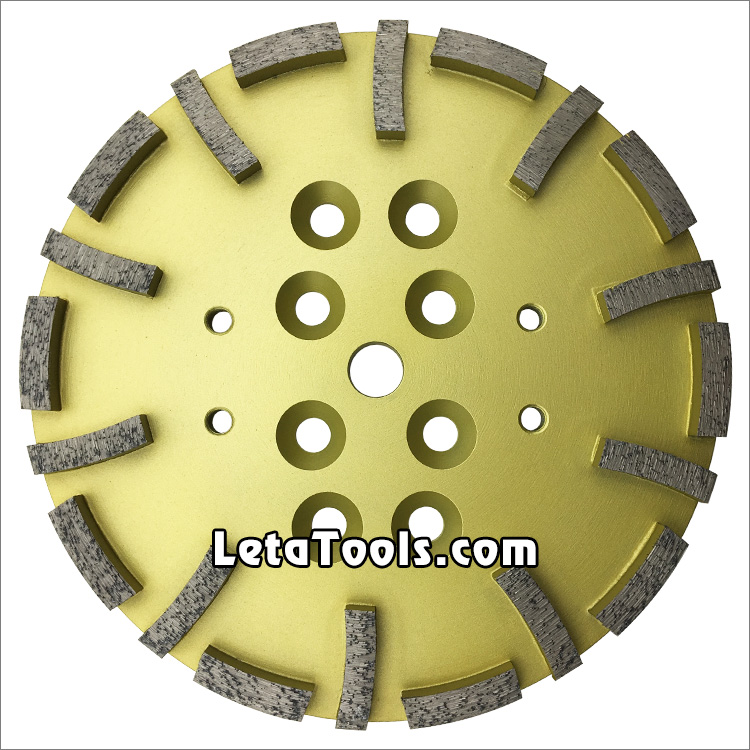

10"(250mm) Diamond Grinding Plate - Curved Segments



This 250mm diamond grinding plate with multi-hole design fits to most of the single head grinder in the market, such as Blastrac/Trelawny grinders.



It is designed for removing hard epoxies and coatings, erasing concrete imperfections, leveling uneven spots or joints and smoothing rough or patched concrete surfaces. It has 10-20pcs curved shape diamond segments and it is very high efficient for grinding deep on the concrete surface.



It can be used dry, but will give better performance and life used wet.


Cooling holes in the engineered core improve through-visibility of material.


Generous 10mm deep diamond segments for long life.



We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.



For coarse grinding(#6-#40), medium grinding(#50-#120), fine grinding(#150-#200).



Bond type: soft, medium, hard.







Code No. Diameter Segment No. Segment Size Grit Bond Type

LT-DGD-01-10

10"(250mm)

10pcs

40x10x10mm

#6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170, #200

soft

medium

hard

LT-DGD-01-20 10"(250mm)

20pcs

40x10x10mm





The about specifications & photos is for reference, other specification may be available as per customer's demand.
