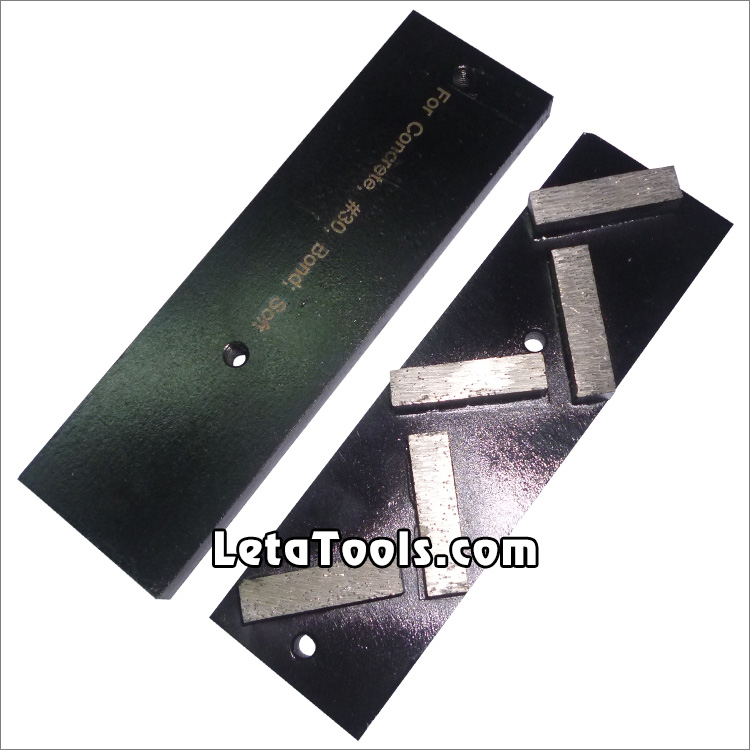

170mm Diamond Block for Concrete
Grinding
Diamond grinding block with
5pcs segments for rough leveling and grinding of concrete/terrazzo/stone
floor, such as underground parking lot, factory floor, etc., to remove
the attachment on its surface.
Metal bond diamond segment has high strength, excellent wear
resistance, and a low friction coefficient, it also has high
grinding efficiency and low grinding force generates less heat in
the grinding process.
We provide you with different metal bonds to fit different
hardness of concrete, and a wide range of diamond grits can be
chosen.
For coarse grinding(#6-#40), medium grinding(#50-#120), fine
grinding(#150-#200).
Bond type: soft, medium, hard.
|
Code No. |
Grit |
Segment No. |
Segment Size |
Bond Type |
Steel Base Spec. |
|
LT-DGT-O-01
|
#6, #16, #20, #25, #30,
#40,
#50, #60,
#80,
#100, #120,
#150,
#170,
#200 |
5pcs |
40x10x10mm |
soft
medium
hard |
170x50x10mm |
The about specifications & photos is for reference, other specification
may be available as per customer's demand.
