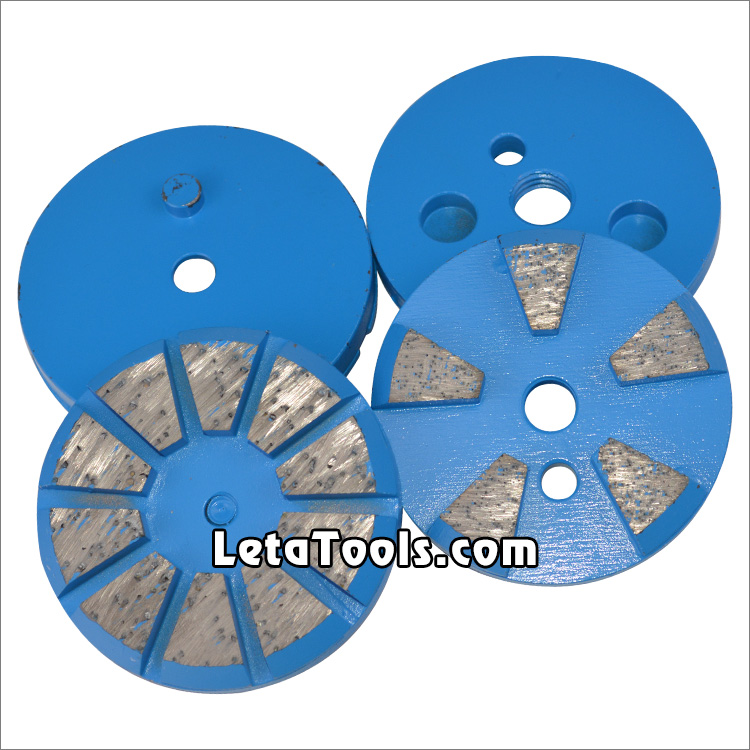

3"(80mm) Metal Bond
Beveled Edge Diamond Disc for STI/Sase Floor Grinders
These metal bond diamond
discs are mainly used for all-purpose grinding on a wide range of
substrates, concrete floor preparation, professional for quick
removal of epoxy, paint, glue, mastics, and coatings.
They are suitable for STI/Sase/Stonekor/PioneerEclipse
machines, fits floor grinders with polar magnetic 1- Pin system,
etc.
The beveled edge segments
are for avoiding scratch marks on floors.
It can be used dry, but
will give better performance and life used wet.
We provide you with different metal bonds to fit different
hardness of concrete, and a wide range of diamond grits can be
chosen.
For coarse grinding(#6-#40), medium grinding(#50-#120), fine
grinding(#150-#200).
Bond type: soft, medium, hard.
|
Code No. |
Diameter |
Segment No. |
Segment Height |
Grit |
Bond Type |
|
LT-DGD-04-01-5
|
3"(80mm) |
5pcs |
7.5mm |
#6, #16, #20, #25, #30,
#40,
#50, #60,
#80,
#100, #120,
#150,
#170,
#200 |
soft
medium
hard |
|
LT-DGD-04-01-10 |
3"(80mm) |
10pcs |
7.5mm |
The about specifications & photos is for reference, other specification
may be available as per customer's demand.
