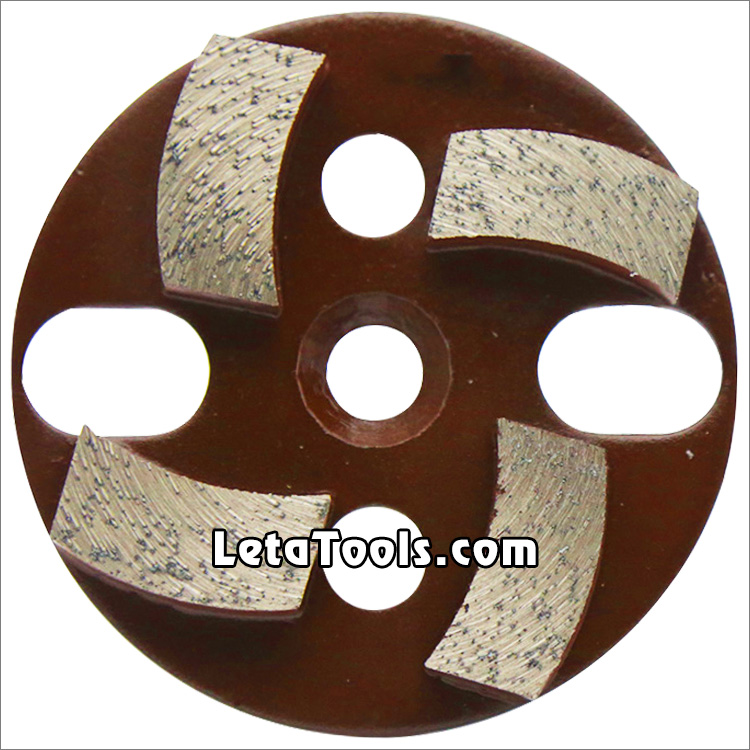

3" 4" Magnetic Diamond
Disc for Floor Grinding - Curved Segments
The diamond grinding disc
with curved segments
is mainly used for leveling, coarse grinding and fine grinding
preparation or old floor renovation before polishing on various
concrete, terrazzo, stone floors.
Magnetic design of steel
base, easy to change and stick on the plate tightly.
Metal bond diamonds have
high strength, excellent wear resistance, and a low friction
coefficient. This disc has 4pins and 4pcs curved shape segments with
high diamond concentration for long life, and
it is very high efficient for grinding deep on the concrete surface.
It can be used dry, but
will give better performance and life used wet.
We provide you with different metal bonds to fit different
hardness of concrete, and a wide range of diamond grits can be
chosen.
For coarse grinding(#6-#40), medium grinding(#50-#120), fine
grinding(#150-#200).
Bond type: soft, medium, hard.
|
Code No. |
Diameter |
Segment No. |
Segment Size |
Grit |
Bond Type |
|
LT-DGD-05-02-80
|
3"(80mm) |
4pcs |
24x10x10mm |
#6, #16, #20, #25, #30,
#40,
#50, #60,
#80,
#100, #120,
#150,
#170,
#200 |
soft
medium
hard |
|
LT-DGD-05-02-100
|
4"(100mm) |
4pcs |
24x10x10mm |
The about specifications & photos is for reference, other specification
may be available as per customer's demand.
