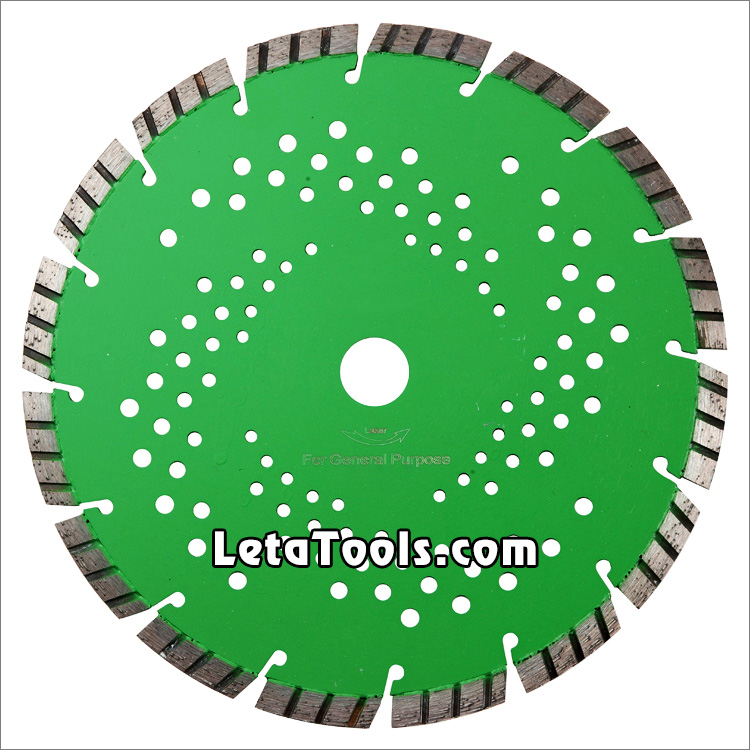

Diamond Saw Blades for General Purpose Cutting - Diagonal Turbo Segments



General purpose diamond saw blades with diagonal turbo segments for fast cutting various material such as concrete, asphalt, brick, block, masonry, granite, marble and other materials, which is a good choice for do-it-yourself contractors or homeowners who need a single blade to cut several different types of material.



Diameter: 4"(105mm)-18"(450mm), segment height: 10mm.



Welding method: Laser welded.



Dry or wet use, water coolant is benefit for longer cutting life.



Usually used on: angle grinders, table saws, high speed power saws, masonry saws, walk behind saw, handheld saw machines.





Code No.

Diameter

(mm/inch)

Segment Size

(mm)

Segment No.

(pcs/set)

Bore Size Welding Method
LT-SBGP-03-01

105mm(4")

40x2.2x10

8

25.4mm

50mm

60mm

or

As per demand

Laser

LT-SBGP-03-02

115mm(4.5")

40x2.2x10

9

LT-SBGP-03-03

125mm(5")

40x2.2x10

10

LT-SBGP-03-04

150mm(6")

40x2.2x10

12

LT-SBGP-03-05

180mm(7")

40x2.4x10

14

LT-SBGP-03-06

200mm(8")

40x2.8x10

16

LT-SBGP-03-07

230mm(9")

40x2.8x10

18

LT-SBGP-03-08

250mm(10")

40x3.0x10

18

LT-SBGP-03-09

300mm(12")

40x3.0x10

21

LT-SBGP-03-10

350mm(14")

40x3.2x10

24

LT-SBGP-03-11

400mm(16")

40x3.6x10

28

LT-SBGP-03-12

450mm(18")

40x4.0x10

32





The about specification & photo is for reference, other specification may be available as per demand.





Warm Prompt:

For your personal protection, to take good care of your eyes/ears/face/hands/body/etc., before you start working we recommend that you wear safety glasses, dust aspirators, welding gloves, safety shoes, and other appropriate equipment.
