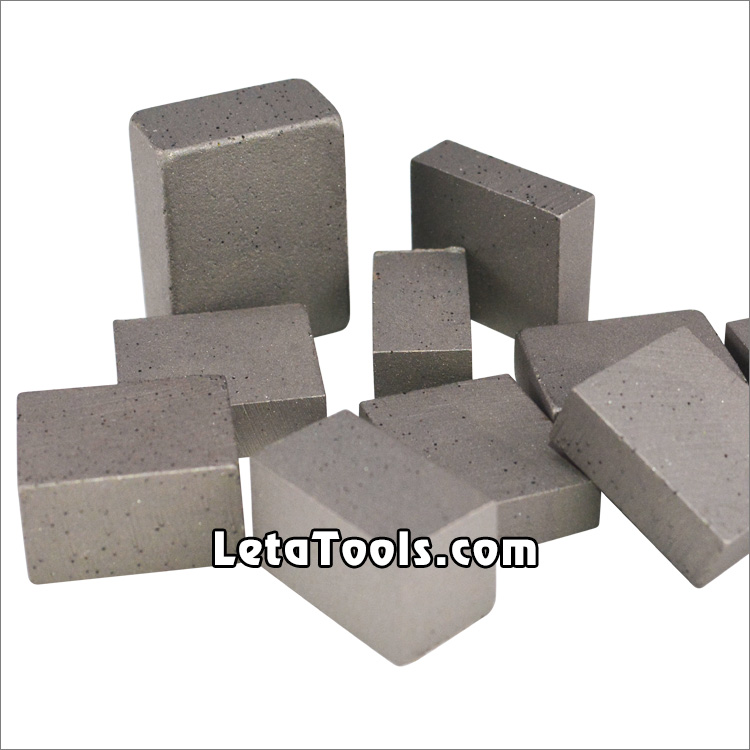

900mm-3500mm Diamond Segments for Granite Block Cutting

Diamond Segment taper shape with sandwich/mulit-layer structure of 900-3500mm circular saw blades for block cutting of granite, sandstone, various hard stone with quartz.

Suitable for bridge cutting machines, single arm cutting machines.

Wet use only with sufficient water, coolant material put into water is benefit for faster cutting.

Welding method: silver/copper welding by high frequency welding machine.


high frequency welding	Sandwich structure	Multi-layer structure

Code No.	Diameter (mm)	Segment Dimension (L × W × H) mm			Segment No.
Code No.	Diameter (mm)	Length	Width (Taper Type)	Height	Segment No.
LT-DSGB-01-900	900	24	7.0/6.5	12/15/20	64
LT-DSGB-01-1000	1000	24	7.0/6.5	12/15/20	70
LT-DSGB-01-1100	1100	24	7.4/6.8	12/15/20	74
LT-DSGB-01-1200	1200	24	7.5/7.0	12/15/20	80
LT-DSGB-01-1350	1350	24	8.4/7.7	12/15/20	88
LT-DSGB-01-1400	1400	24	8.5/8.0	12/15/20	96
LT-DSGB-01-1600	1600	24	9.0/8.4	12/15/20	104/108
LT-DSGB-01-1700	1700	24	9.4/8.4	12/15/20	112
LT-DSGB-01-1800	1800	24	9.5/9.0	12/15/20	120
LT-DSGB-01-2000	2000	24	10.5/9.5	12/15/20	128
LT-DSGB-01-2200	2200	24	11.5/10.5	12/15/20	132/136
LT-DSGB-01-2500	2500	24/30	12.0/11.0	15/20/25/30	140
LT-DSGB-01-2700	2700	24/30	12.0/11.0	15/20/25/30	140
LT-DSGB-01-3000	3000	24/30	12.5/11.5	15/20/25/30	160
LT-DSGB-01-3500	3500	24/30	13.5/12.5	15/20/25/30	180

The about specifications & photos is for reference, other specification may be available as per demand.
