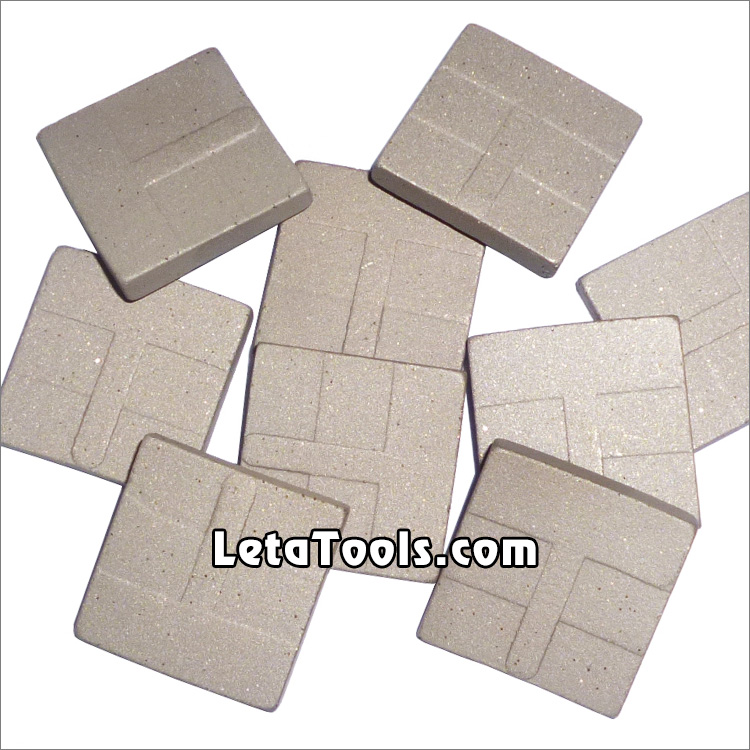

Diamond Segments Granite Slab Cutting 20mm length T Shape

Diamond segment 20mm length with T & taper shape of 350-600mm circular saw blades for slab edge cutting of granite, sandstone, various hard stone with quartz.

20mm with T taper shape is benefit for speed cutting.

Suitable for bridge cutting machines, manual handling cutting machines or table cutting machines.

Wet use only with sufficient water.

Welding method: Silver welding by high frequency welding machine.

Code No.	Diameter (mm/Inch)	Segment Size (mm)	Segment No. (pcs/set)
LT-DSGS-04-250	250mm(10")	x	18
LT-DSGS-04-300	300mm(12")	20x3.6/3.3/3.0x20	21
LT-DSGS-04-350	350mm(14")	20x3.6/3.3/3.0x20	24
LT-DSGS-04-400	400mm(16")	20x4.0/3.7/3.4x20	28
LT-DSGS-04-450	450mm(18")	20x4.3/4.0/3.7x20	32
LT-DSGS-04-500	500mm(20")	20x4.3/4.0/3.7x20	36
LT-DSGS-04-550	550mm(22")	20x5.0/4.7/4.4x20	38
LT-DSGS-04-600	600mm(24")	20x5.0/4.7/4.4x20	42
LT-DSGS-04-650	650mm(26")	20x5.0/4.7/4.4x20	46
LT-DSGS-04-700	700mm(28")	20x5.4/5.1/4.8x20	50
LT-DSGS-04-800	800mm(32")	20x6.0/5.7/5.1x20	57

The about specifications & photos is for reference, other specification may be available as per demand.
