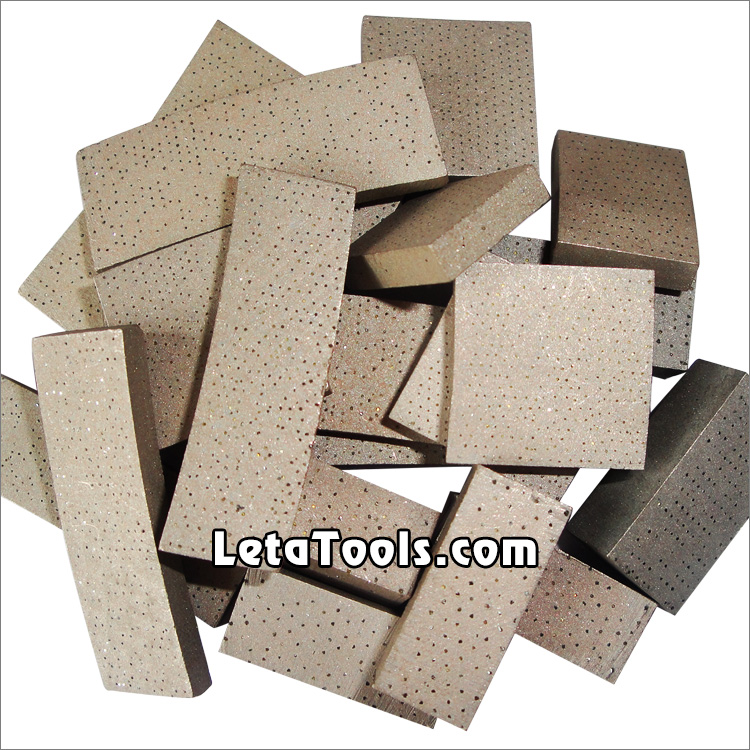

Diamond Matrix Segments Granite Stone Slab Edge Cutting

Diamond matrix segments of 250-1200mm circular saw blades for cutting granite, marble, sandstone, limestone, ceramic, concrete, and various abrasive materials.

Under same bond condition, the cutting speed and life of diamond matrix segments are both minimum 20% more than other regular segments.

Suitable for bridge cutting machines, manual handling cutting machines or table cutting machines.

Wet use only with sufficient water.

Welding method: Silver welding by high frequency welding machine.


Structure	Cutting Speed	Cutting Life

Code No.	Diameter (mm/Inch)	Segment Size (mm)			Segment No. (pcs/set)	Structure
Code No.	Diameter (mm/Inch)	Length	Width	Height	Segment No. (pcs/set)	Structure
LT-DSMATRIX-01-250	250mm(10")	40	2.8	10	18	Arix (Matrix)
LT-DSMATRIX-01-300	300mm(12")	40	3.0	10/12/15	21
LT-DSMATRIX-01-350	350mm(14")	40	3.2	10/12/15	24/25
LT-DSMATRIX-01-350	350mm(14")	20	3.2	15/20	24/25
LT-DSMATRIX-01-400	400mm(16")	40	3.6	10/12/15	28
LT-DSMATRIX-01-400	400mm(16")	20	3.6	15/20
LT-DSMATRIX-01-450	450mm(18")	40	4.0	10/12/15	32
LT-DSMATRIX-01-450	450mm(18")	20	4.0	15/20
LT-DSMATRIX-01-500	500mm(20")	40	4.2	10/12/15	36
LT-DSMATRIX-01-500	500mm(20")	20	4.2	15/20
LT-DSMATRIX-01-600	600mm(24")	40	4.6	10/12/15	42
LT-DSMATRIX-01-600	600mm(24")	20	4.6	15/20
LT-DSMATRIX-01-700	700mm(28")	40	5.0	10/12/15	50
LT-DSMATRIX-01-700	700mm(28")	20	5.0	15/20
LT-DSMATRIX-01-800	800mm(32")	40	5.2	10/12/15	46
LT-DSMATRIX-01-800	800mm(32")	20	5.2	15/20
LT-DSMATRIX-01-900	900mm(36")	24	6.0	10/12/15	64
LT-DSMATRIX-01-1000	1000mm(40")	24	6.5	10/12/15	70
LT-DSMATRIX-01-1200	1200mm(48")	24	7.0	10/12/15	80


15mm height for granite	10mm height for marble	20mm length for granite

15mm for granite block	10mm for marble block

The about specifications & photos is for reference, other specification may be available as per demand.
