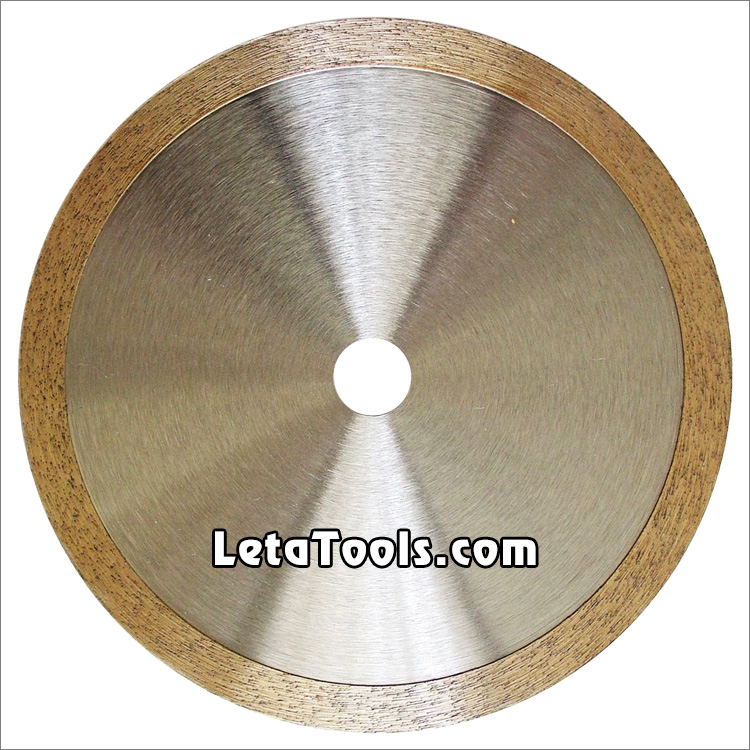

Diamond Saw Blades for Ceramic Porcelain Cutting -
Continuous Rim
|
Continuous rim diamond saw blades for cutting ceramic, porcelain, tile, masonry, marble, and soft stone, fast cutting speed with less chips.
Steel Core
Type: Continuous rim
Segment
height: 8mm, 10mm.
Hot-press sintered.
Single
blade or multi-blade cutting.
Wet
or dry use.
The blades are used
with angle grinders, brick saws, circular saws, concrete saws,
portable saws, radial arm saws and tile saws.
|
|
 |
|
Code No. |
Diameter |
Bore Size |
Segment Thickness |
Segment Height |
|
CD-CCSB-01-01 |
105mm(4") |
20/22.23/25.4mm |
1.4mm |
8/10mm |
|
CD-CCSB-01-02 |
115mm(4-1/2") |
20/22.23/25.4mm |
1.4mm |
8/10mm |
|
CD-CCSB-01-03 |
125mm(5") |
20/22.23/25.4mm |
1.4mm |
8/10mm |
|
CD-CCSB-01-04 |
150mm(6") |
20/22.23/25.4mm |
1.8mm |
8/10mm |
|
CD-CCSB-01-05 |
180mm(7") |
20/22.23/25.4mm |
1.8mm |
8/10mm |
|
CD-CCSB-01-06 |
200mm(8") |
20/22.23/25.4mm |
1.8mm |
10mm |
|
CD-CCSB-01-07 |
230mm(9") |
20/22.23/25.4mm |
2.0mm |
10mm |
|
CD-CCSB-01-08 |
250mm(10") |
25.4/30/50/60mm |
2.0mm |
10mm |
|
CD-CCSB-01-09 |
300mm(12") |
25.4/30/50/60mm |
2.2mm |
10mm |
The about specification & photo is for reference, other specification
may be available as per demand.
| Warm Prompt: |
For your personal
protection, to take good care of your
eyes/ears/face/hands/body/etc., before you start working we
recommend that you wear safety glasses, dust aspirators,
welding gloves, safety shoes, and other appropriate
equipment.
|
