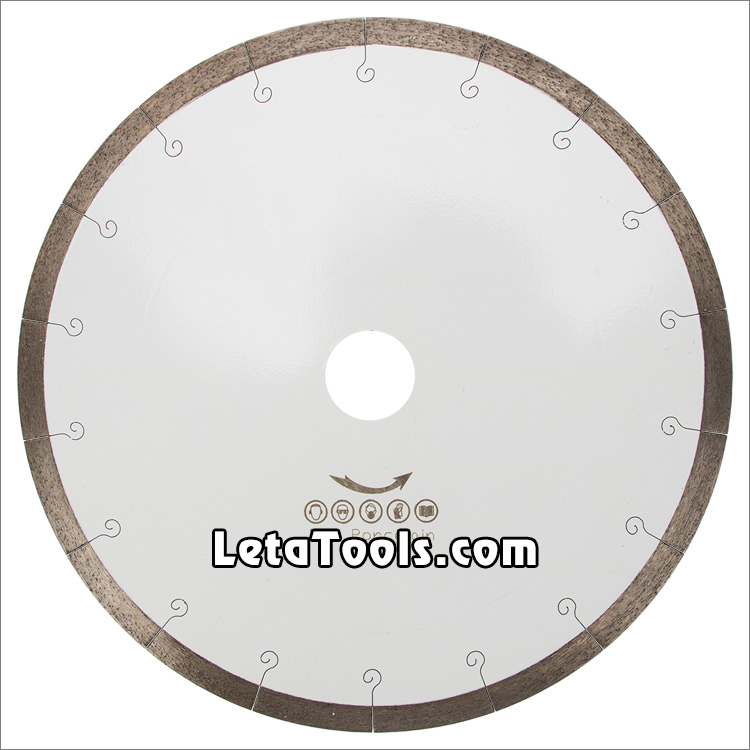

Diamond saw blades continuous rim with laser cut fishhook slot for cutting ceramic, porcelain, tile, masonry, marble, and soft stone, fast cutting speed with less chips.

Steel Core Type: Continuous rim with laser cut fishhook slot.

Segment height: 10mm.

Hot sintered or silver welded.

Single blade or multi-blade cutting.

Wet or dry use.

Compared to normal continuous rim blade, J slot is better for speed cutting and coolant.

The blades are used with angle grinders, brick saws, circular saws, portable saws, radial arm saws, tile saws, manual edge cutting machines, bridge cutting machines.

Code No.

Diameter

Hole

(mm)

Segment Thickness

Segment Height

CD-CCSB-02-01

105mm(4")

20/22.23/25.4

1.4mm

10mm

CD-CCSB-02-02

115mm(4-1/2")

20/22.23/25.4

1.4mm

10mm

CD-CCSB-02-03

125mm(5")

20/22.23/25.4

1.4mm

10mm

CD-CCSB-02-04

150mm(6")

20/22.23/25.4

1.8mm

10mm

CD-CCSB-02-05

180mm(7")

20/22.23/25.4

1.8mm

10mm

CD-CCSB-02-06

200mm(8")

20/22.23/25.4

1.8mm

10mm

CD-CCSB-02-07

230mm(9")

20/22.23/25.4

2.0mm

10mm

CD-CCSB-02-08

250mm(10")

25.4/30/50/60

2.0mm

10mm

CD-CCSB-02-09

300mm(12")

25.4/30/50/60

2.2mm

10mm

Hot sintered

or

Silver welded

10mm

For your personal protection, to take good care of your eyes/ears/face/hands/body/etc., before you start working we recommend that you wear safety glasses, dust aspirators, welding gloves, safety shoes, and other appropriate equipment.
