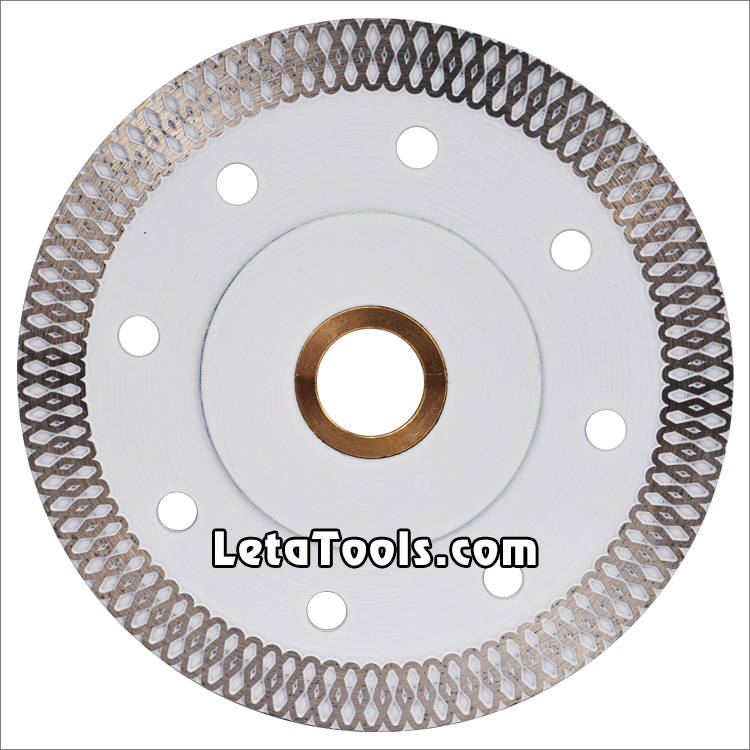

Diamond Saw Blades for
Ceramic Porcelain Cutting - Continuous & Fish Scale Rim
|
Diamond saw blades
with continuous & fish scale rim segments for cutting ceramic,
porcelain, tile, masonry, marble, and soft stone, fast cutting
speed with less chips.
Segment
height: 10mm.
Steel core type:
thicker of central part.
Hot-press sintered.
Wet or dry use.
The blades are used
with angle grinders, brick saws, circular saws, concrete saws,
portable saws, radial arm saws and tile saws.
|
|
 |
|
Code No. |
Diameter |
Bore Size |
Segment Thickness |
Segment Height |
|
CD-CCSB-05-01 |
105mm(4") |
20/22.23/25.4mm |
1.4mm |
10mm |
|
CD-CCSB-05-02 |
110mm(4.5") |
20/22.23/25.4mm |
1.4mm |
10mm |
|
CD-CCSB-05-03 |
115mm(4-1/2") |
20/22.23/25.4mm |
1.4mm |
10mm |
|
CD-CCSB-05-04 |
125mm(5") |
20/22.23/25.4mm |
1.4mm |
10mm |
|
CD-CCSB-05-05 |
150mm(6") |
20/22.23/25.4mm |
1.8mm |
10mm |
|
CD-CCSB-05-06 |
180mm(7") |
20/22.23/25.4mm |
1.8mm |
10mm |
|
CD-CCSB-05-07 |
200mm(8") |
20/22.23/25.4mm |
1.8mm |
10mm |
|
CD-CCSB-05-08 |
230mm(9") |
20/22.23/25.4mm |
2.0mm |
10mm |
The about specification & photo is for reference, other specification
may be available as per demand.
| Warm Prompt: |
For your personal
protection, to take good care of your
eyes/ears/face/hands/body/etc., before you start working we
recommend that you wear safety glasses, dust aspirators,
welding gloves, safety shoes, and other appropriate
equipment.
|
