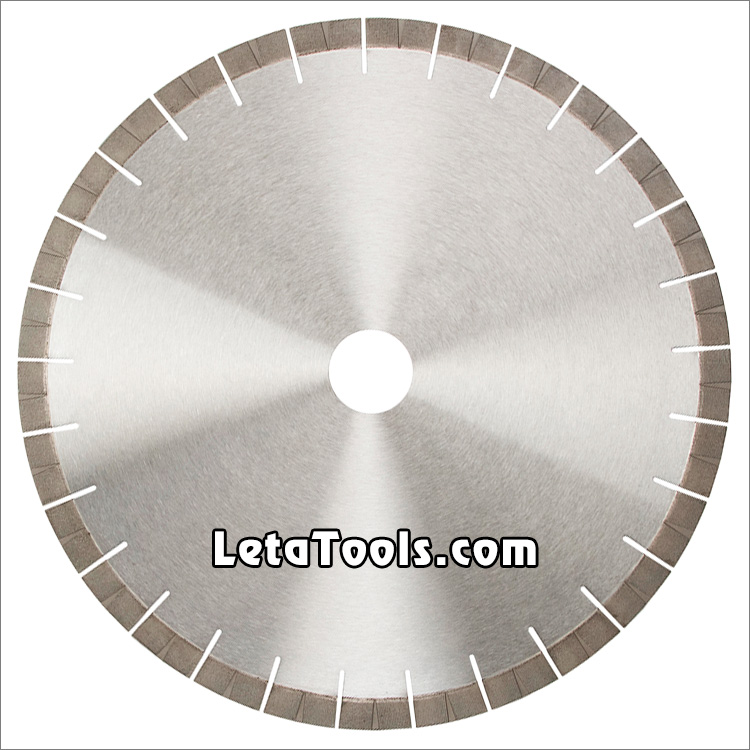

Diamond Saw Blades for Granite Slab Edge Cutting - V Groove Matrix Segments



Diamond saw blades with V groove matrix segments for cutting slab edge of granite, sandstone, various hard stones with quartz, fast and smooth cutting with long life.



Under same bond condition, the cutting speed and life of blades with diamond matrix segments are both minimum 20% more than other regular blades.



The blades are mostly used on manual edge cutting machines, bridge cutting machines or table cutting machines.



Segment height: 20mm



Silent steel core is available.



Welding Type: Silver welded by high frequency welding machine.



Wet use only with sufficient water.







Code No.

Diameter

(mm/Inch)

Bore Size

(mm)

Segment Height

(mm)

Segment No.

(pcs/set)

Steel Blank Type

Welding Method

LT-SBEG-12-01

350mm(14")

50/60

20

24/25

Normal

&

Silent

Silver Welded

LT-SBEG-12-02

400mm(16")

50/60

20

28/29

LT-SBEG-12-03

450mm(18")

50/60

20

32

LT-SBEG-12-04

500mm(20")

50/60

20

36

LT-SBEG-12-05

550mm(22")

50/60

20

38

LT-SBEG-12-06

600mm(24")

50/60

20

42





The about specification & photo is for reference, other specification may be available as per demand.
