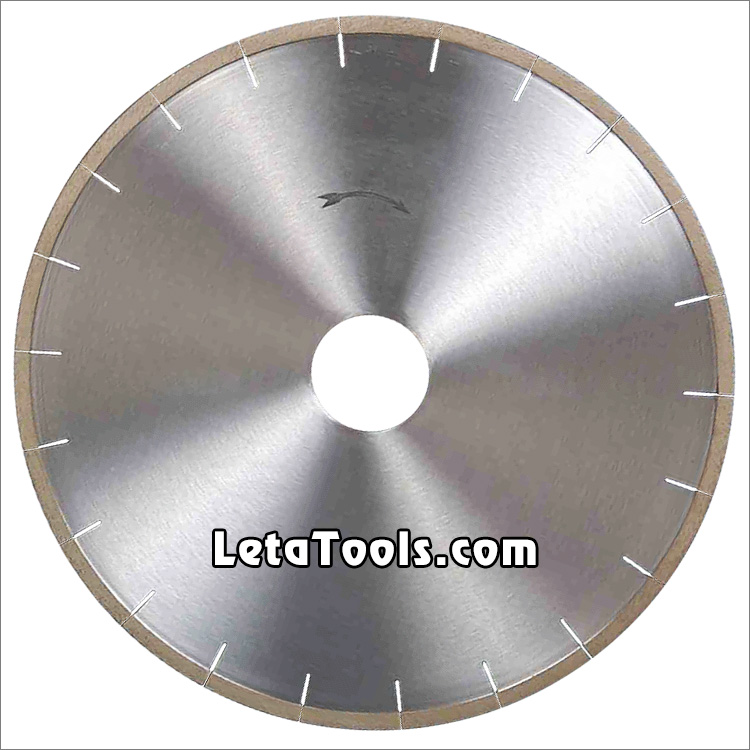

Diamond Saw Blades with 8mm or 10mm height fanlike shape segments for slab edge cutting of marble, limestone, slate, various soft stones without quartz, cutting slabs to tiles or as per order request.

The blades are mostly used on manual edge cutting machines, bridge cutting machines or table cutting machines.

Segment height: 8mm, 10mm.

Silent steel core is available.

Welding Type: Silver welded by high frequency welding machine.

Wet use only with sufficient water.

Code No.

Diameter

(mm/Inch)

Bore Size

(mm)

Segment Height

(mm)

Segment No.

(pcs/set)

Steel Blank Type

Welding Method

LT-SBEM-02-01

250mm(10")

50/60

8/10

18

Normal

or

Silent

Silver Welded

LT-SBEM-02-02

300mm(12")

50/60

8/10

21

LT-SBEM-02-03

350mm(14")

50/60

8/10

24/25

LT-SBEM-02-04

400mm(16")

50/60

8/10

28

LT-SBEM-02-05

450mm(18")

50/60

8/10

32

LT-SBEM-02-06

500mm(20")

50/60

8/10

36

LT-SBEM-02-07

550mm(22")

50/60

8/10

38

LT-SBEM-02-08

600mm(24")

50/60

8/10

42

LT-SBEM-02-09

625mm(25")

50/60

8/10

44

LT-SBEM-02-10

700mm(28")

50/60

8/10

50

LT-SBEM-02-11

725mm(28")

50/60

8/10

50

LT-SBEM-02-12

750mm(30")

50/60

8/10

52

LT-SBEM-02-13

800mm(32")

50/60

8/10

46
