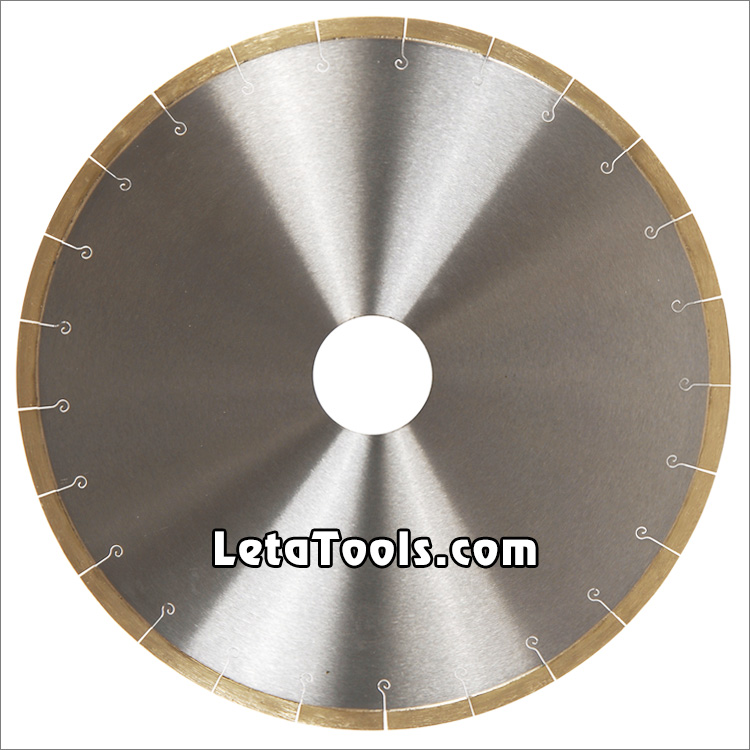

Diamond Saw Blades for Marble Slab Cutting - Fishhook
Steel Blank with Fanlike Segments
Diamond Saw Blades with fishhook steel blank and 10mm height fanlike shape segments for
slab edge cutting of marble, limestone, slate, various soft stones
without quartz, cutting slabs to tiles or as per order request.
The blades are mostly used on manual edge cutting
machines, bridge cutting
machines or table cutting machines.
Segment height: 10mm.
Welding Type: Silver welded by high frequency welding
machine.
Wet use only with sufficient water.
Code
No.
Diameter
(mm/Inch)
Bore Size
(mm)
Segment Height
(mm)
Segment No.
(pcs/set)
Steel Blank Type
Welding Method
LT-SBEM-03-01
250mm(10")
50/60
10
18
Non-silent
Silver Welded
LT-SBEM-03-02
300mm(12")
50/60
10
21
LT-SBEM-03-03
350mm(14")
50/60
10
24/25
The about specification & photo is for reference, other specification
may be available as per demand.
